Flat Panel Detector IRAY Venu 1717x
€ 13.100,00

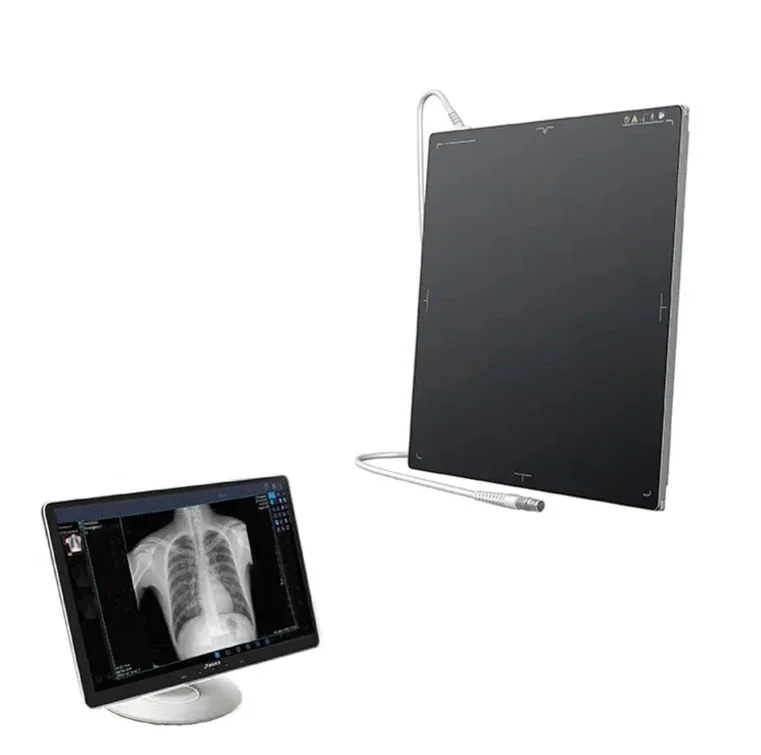

Venu1717x – Portable 17×17″ Cassette-Size Flat Panel Detector
The Venu1717x is a lightweight, portable 17×17-inch flat panel detector (FPD) designed for digital X-ray imaging. Featuring a-Si technology and a direct-deposited CsI scintillator, it delivers high-resolution, detailed X-ray images. With AED support and fast acquisition times, it’s ideal for hospitals, mobile imaging, and space-constrained X-ray systems.
Key Features
-
High-resolution imaging: 3072 × 3072 pixels, 139 µm pixel pitch
-
Excellent image quality: High sensitivity and DQE
-
Fast workflow: AED, software, and prep trigger modes
-
Lightweight & portable: <4 kg
-
Durable design: Supports up to 150 kg
Venu1717x – Portable Cassette-Size Flat Panel Detector for Digital X-Ray
The Venu1717x is a state-of-the-art 17×17-inch portable flat panel detector (FPD) designed for digital X-ray imaging. Featuring amorphous silicon (a-Si) technology and a direct-deposited CsI scintillator, the Venu1717x delivers exceptionally sharp images with outstanding detail. Its built-in Automatic Exposure Detection (AED) ensures a fast and efficient workflow, making it an ideal solution for hospitals, mobile X-ray applications, and space-constrained digital X-ray systems.
With its cassette-sized design, the Venu1717x is lightweight and highly portable without compromising image quality. It’s perfect for environments where speed, precision, and flexibility are essential.
Key Benefits
- High-resolution digital X-ray: 3072×3072 pixels with 139 µm pixel pitch
- Excellent image quality: High sensitivity and DQE for precise diagnostics
- Fast workflow: AED/Software/Prep trigger modes for immediate image capture
- Portable and lightweight: Less than 4 kg without cable and handle
- Durable and robust: Supports up to 150 kg evenly
Technical Specifications – Venu1717x
| Feature | Specification |
|---|---|
| Detector Technology | Amorphous Silicon (a-Si) |
| Scintillator | CsI (direct deposition) |
| Active Area | 427 × 427 mm |
| Number of Pixels | 3072 × 3072 |
| Pixel Pitch | 139 µm |
| AD Conversion | 16-bit |
| Trigger Modes | AED / Software / Prep |
| Data Interface | Wired (Compound Cable, 1+6 m) |
| Dimensions | 460 × 460 × 15 mm |
| Weight | <4 kg (without cable & handle) |
| Weight Capacity | 150 kg evenly |
| Image Performance – Sensitivity | Typ. 750 LSB/µGy |
| Maximum Linear Dose | Typ. 60 µGy |
| MTF @ 1.0 LP/mm | 68% |
| MTF @ 2.0 LP/mm | 40% |
| MTF @ 3.0 LP/mm | 22% |
| DQE @ 0 LP/mm | 69% (2.5 µGy, RQA5) |
| DQE @ 1 LP/mm | 52% (2.5 µGy, RQA5) |
| DQE @ 2 LP/mm | 36% (2.5 µGy, RQA5) |
| Limiting Resolution | 3.6 LP/mm (without phantom/grid) |
| Preview Acquisition Time | Typ. 3 s |
| Full Image Time | Typ. 5 s |
| Cycle Time | Typ. 8 s |
| Operating Temperature | 5℃ – 35℃ |
| Storage/Transport Temperature | -30℃ – 55℃ |
| Operating Humidity | 30% – 80% (non-condensing) |
| Storage/Transport Humidity | 10% – 90% (non-condensing) |
| Operating/Transport Pressure | 700 – 1060 mbar |
