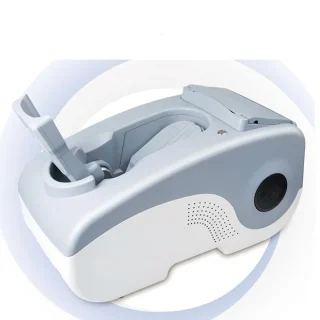

Bone Densitometer ecoRAY BD05
€ 4.900,00Add to cartecoRAY BD05 is a compact, radiation-free ultrasound bone densitometer designed for fast and reliable osteoporosis screening. Using quantitative ultrasound (QUS) technology, it measures bone quality at the calcaneus and delivers clear T-Score and Z-Score results within seconds. The ecoRAY BD05 is easy to operate, highly reproducible, and ideal for medical practices, clinics, and preventive health programs.
-
Bone Densitometer ecoRAY BD06
€ 6.900,00Add to cartecoRAY BD06 – Ultrasound Bone Densitometer
The ecoRAY BD06 is a professional ultrasound bone densitometer for accurate and fast osteoporosis screening. Non-invasive, patient-friendly, and ideal for clinics, practices, and health centers. Measure bone density quickly with reliable results and track patient data efficiently.
- ✅ Ultrasound-based, radiation-free measurement
- ✅ Precise T-score and Z-score evaluation
- ✅ Quick, non-invasive, and comfortable
- ✅ Compact, portable, and clinic-ready
-

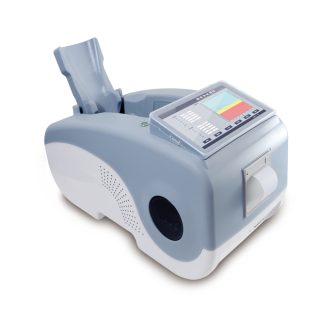

Bone Densitometer ecoRAY BD07
€ 8.200,00Add to cartTechnical Specifications – ecoRAY BD07
- Probe Frequency: 0.5 MHz ± 10%, Broadband at 4–6 dB: >60%
- Measurement Time: ≤ 25 seconds per measurement
- Test Repeatability (OPR): ≤ ±1%
- Measurement Accuracy (SOS): ≤ ±2%
- Test Repeatability (BUA): ≤ ±5%
-

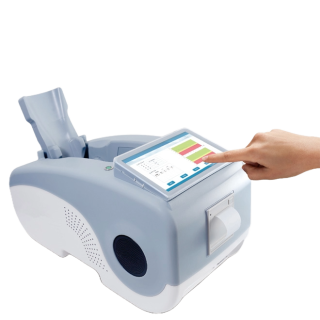

Bone Densitometer ecoRAY BD08
€ 9.600,00Add to cartecoRAY BD08 Bone Density Scanner
The ecoRAY BD08 Bone Density Scanner provides fast, precise, and radiation-free ultrasound bone density measurement. It measures BUA, SOS, and Bone Mass Index (OI) in ≤ 25 seconds, delivering reliable values for T-score, Z-score, and other diagnostic parameters.
- Full dry measurement method with two-way ultrasound transmission
- 0.5 MHz probe, accuracy: SOS ±2%, OPR ≤ ±1%, BUA ≤ ±5%
- Automatic calibration and temperature compensation system
- Built-in reference databases: Asian, European, Middle Eastern, African
- Dual USB output & built-in thermal printer, PACS-compatible
- Adult & pediatric foot shields, three auxiliary foot stations for different sizes
- Safe ultrasound output: TIS 2.8 × 10⁻³ mW/cm²
- Automatic diagnostic reports for easy patient management
-

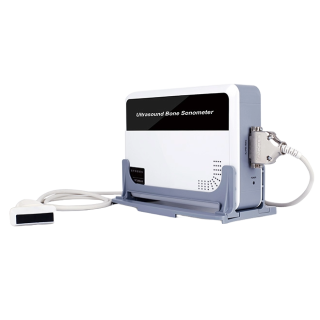

Bone Densitometer ecoRAY BD09
€ 3.800,00Add to cartecoRAY BD09 Bone Densitometer – Accurate, Portable Radius Bone Measurement
The ecoRAY BD09 is a portable, non-invasive ultrasound device designed to measure bone density at the radius in adults and older children. Safe, fast, and highly accurate, it provides reliable results independent of bone size or soft tissue thickness. Ideal for osteoporosis screening, bone health monitoring, and therapy evaluation, the ecoRAY BD09 is perfect for clinics, hospitals, and health centers. -
Bone Densitometer ecoRAY BD10
€ 4.650,00Add to cartThe ecoRAY BD10 ultrasound bone densitometer provides fast and precise bone density measurements for children, adults, and seniors. Its compact design, USB connection, and plug & play setup make it ideal for clinics, medical offices, and health centers. Fully automated analysis delivers T-score, Z-score, bone age, and fracture risk. Multi-ethnic reference databases ensure reliable results for all age groups.
-

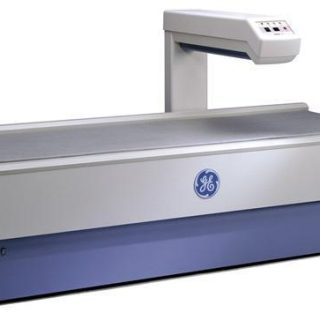

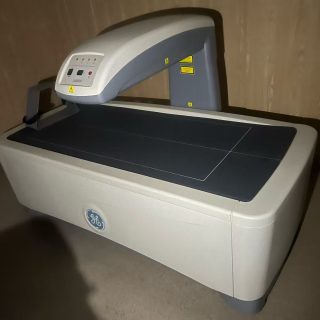

Bone Densitometer GE LUNAR DPX-NT (DXA)
€ 12.000,00Add to cart**GE LUNAR DPX-NT – Bone Densitometry System (DXA)**
The **GE LUNAR DPX-NT** is a reliable DXA-based bone densitometry system designed for accurate measurement of bone mineral density with low radiation exposure. It is suitable for routine osteoporosis diagnostics and follow-up examinations in clinics and medical practices.
**Technical Specifications (Short Overview):**
* **Technology:** DXA (Dual-Energy X-Ray Absorptiometry, Pencil Beam)
* **Measurement areas:** AP spine, hip (femur), forearm, optional whole body
* **Software:** GE enCORE with automated analysis and reporting
* **Scan time:** Approx. 5–8 minutes per examination
* **Maximum patient weight:** Approx. 136 kg
* **Connectivity:** DICOM, HL7, PACS compatible
* **Power supply:** 120–240 V, 50/60 Hz
* **System weight:** Approx. 272 kg
* **Radiation dose:** Low-dose, patient-friendly X-ray technologyIdeal for efficient, precise, and reproducible bone density measurements in daily clinical use.
-

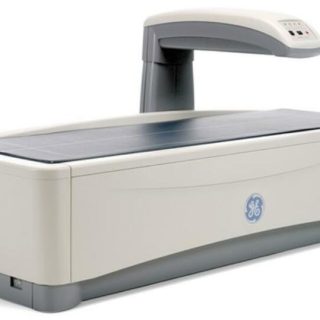

Bone Densitometer GE LUNAR Prodigy (Pre-Owned)
€ 21.300,00Add to cartGE Lunar Prodigy – DXA Bone Densitometry System (Pre-Owned)
The GE Lunar Prodigy is a reliable DXA bone densitometry system (Dual-Energy X-ray Absorptiometry) for accurate bone mineral density (BMD) measurement and osteoporosis assessment. Designed for routine clinical use, it combines fast scan times with proven GE DXA technology.
Technical details:
- Measurement method: Fan-beam DXA
- Image reconstruction: MultiView Image Reconstruction (MVIR)
- Applications: Spine, hip (DualFemur), forearm, whole-body composition
- Scan time: Approx. 10–60 seconds depending on region
- Software: GE enCORE with OneScan and OneVision
- Functions: Automatic positioning, automated analysis, reproducible follow-up exams
- Connectivity: DICOM-compatible, HL7-enabled
Ideal for hospitals, clinics, and specialist practices seeking a dependable DXA system for daily clinical workflows.
-

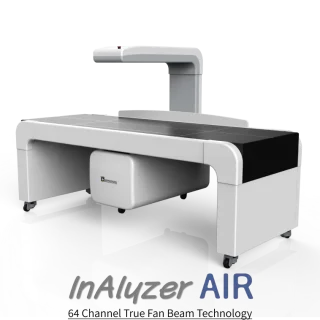

Bone densitometer: Medikors InAlyzer AIR
€ 24.000,00Add to cartRevolutionize Your Osteoporosis Diagnostics with the Medikors InAlyzer AIR
Discover the future of bone density measurement with the Medikors InAlyzer AIR – a compact DEXA system that delivers high-resolution scans and digital radiography in one sleek device. Switch views instantly and get precise, actionable results at the push of a button.
Its world-first open design maximizes scanning space while keeping the footprint minimal – perfect for small clinics (1850 × 800 mm) without compromising a generous scanning area (490 × 900 mm). Work smarter, reduce radiation exposure, and streamline your workflow for faster, safer, and more efficient patient care.
-
CR Mammography Imaging Plate Cassette 24 × 30 cm with CR MM 3.0 Imaging Plate
€ 256,00Add to cartCR imaging plate cassette 24 × 30 cm for mammography, including high-resolution CR MM 3.0 imaging plate. Designed for excellent image quality at low dose, suitable for professional clinical use and compatible with common CR mammography systems.
-

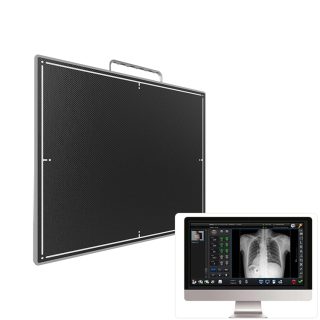

Flat Panel Detector Careray 1717 wireless
€ 9.700,00Add to cartCARERAY 1717 Wireless – Digital X-Ray Flat Panel Detector 17×17″
The CARERAY 1717 Wireless is a high-resolution 17×17 inch digital X-ray flat panel detector designed for both human and veterinary radiography. It delivers fast, high-quality images with low radiation dose and supports wireless (WiFi 2.4/5 GHz) and optional wired Gigabit Ethernet connectivity for flexible use.
Key Technical Details:
-
Detector Type: Amorphous Silicon (a-Si)
-
Scintillator: CsI (Cesium Iodide)
-
Active Area: 430 × 430 mm
-
Pixel Matrix: 3072 × 3072
-
Pixel Size: 140 µm
-
Limiting Resolution: 3.57 lp/mm
-
Image Size: 17 × 17 inches
-
Data Interface: WiFi / Optional Gigabit Ethernet
-
Operating Systems: Windows 7 / 10 / 11 (64 Bit)
-
Battery: High-capacity, hundreds of exposures per charge
-
Special Feature: F2AED – automatic exposure detection (no generator connection needed)
Lightweight, durable, and easy to integrate into existing X-ray systems, the 1717 Wireless is ideal for general radiography, orthopedics, trauma imaging, and veterinary applications.
-
-

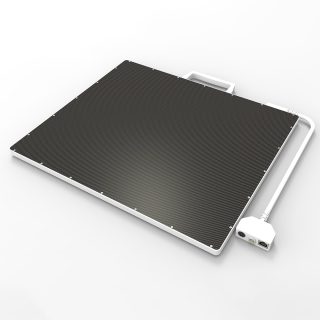

Flat Panel Detector IRAY FP38
€ 9.600,00Add to cartIRAY FP38 – Portable Digital X-Ray Detector
The IRAY FP38 is a high-resolution, portable flat panel X-ray detector suitable for human medical, veterinary, industrial, and research applications. Equipped with Amorphous Silicon (A-Si) technology and a CsI scintillator, it delivers clear, detailed images with high sensitivity and a wide dynamic range. Lightweight and durable, the IRAY FP38 ensures reliable performance in any environment.
Key Specifications:
-
Detector Technology: Amorphous Silicon (A-Si)
-
Scintillator: CsI
-
Active Area: 427 mm x 427 mm
-
Resolution: 3072 x 3072 pixels
-
Pixel Pitch: 139 µm
-
AD Conversion: 16-bit
-
Trigger Mode: AED / Software / Prep
-
Data Interface: Wired (1+6 m compound cable)
-
Dimensions: 460 x 460 x 15 mm
-
Weight: < 4 kg (without handle and cable)
-
Weight Capacity: 150 kg uniformly
IRAY FP38 – portable, precise, and versatile for digital X-ray imaging wherever it’s needed.
-
-

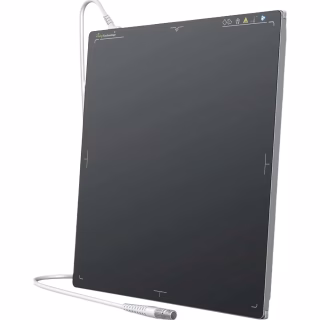

Flat Panel Detector IRAY Venu 1717VX
€ 9.900,00Add to cartVenu 1717XV is a 17 × 17 inch tethered flat panel detector for digital X-ray imaging, designed for veterinary DR systems. It features amorphous silicon detector technology with a CsI scintillator, a 2912 × 2912 pixel matrix, and 16-bit A/D conversion, delivering high-quality images at a low radiation dose. With a 139 µm pixel pitch, 3.6 lp/mm spatial resolution, Ethernet interface, and fast image acquisition (3 s preview / 5 s full image), the Venu 1717XV ensures an efficient and reliable imaging workflow for both new and retrofit X-ray systems.
-

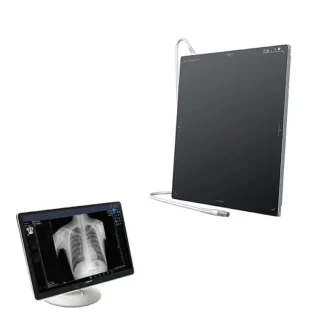

Flat Panel Detector IRAY Venu 1717x
€ 13.100,00Add to cartVenu1717x – Portable 17×17″ Cassette-Size Flat Panel Detector
The Venu1717x is a lightweight, portable 17×17-inch flat panel detector (FPD) designed for digital X-ray imaging. Featuring a-Si technology and a direct-deposited CsI scintillator, it delivers high-resolution, detailed X-ray images. With AED support and fast acquisition times, it’s ideal for hospitals, mobile imaging, and space-constrained X-ray systems.
Key Features
-
High-resolution imaging: 3072 × 3072 pixels, 139 µm pixel pitch
-
Excellent image quality: High sensitivity and DQE
-
Fast workflow: AED, software, and prep trigger modes
-
Lightweight & portable: <4 kg
-
Durable design: Supports up to 150 kg
-
-

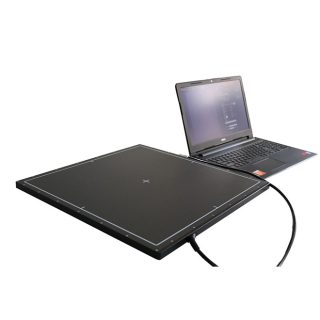

Flat Panel Detector StarRay 01
€ 9.560,00Add to cartDigital X-Ray Flat Panel Detector
High-resolution 17 × 17 inch digital X-ray flat panel detector equipped with a CsI or GdOS scintillator. Featuring a 3072 × 3072 pixel matrix, 140 μm pixel pitch, and 3.7 lp/mm spatial resolution, it delivers sharp, low-dose digital X-ray images. The detector measures 460 × 460 × 16 mm and is fully DICOM-compatible, supporting advanced image acquisition, processing, and analysis. Ideal for hospitals, clinics, and mobile digital radiography (DR) systems.
-

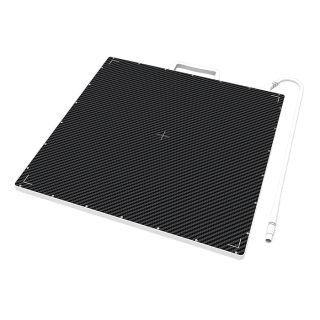

Flat Panel Detector VA FP33
€ 9.800,00Add to cartThe 17×17 inch digital X-ray flat panel detector delivers high-resolution, low-dose imaging for medical, veterinary, and industrial applications. Featuring A-Si technology, CsI scintillator, and multi-gain functionality, it offers fast image acquisition, wide dynamic range, and reliable performance for modern digital radiography (DR) systems. Lightweight, durable, and compatible with Windows-based software, it ensures precise diagnostics every time.
