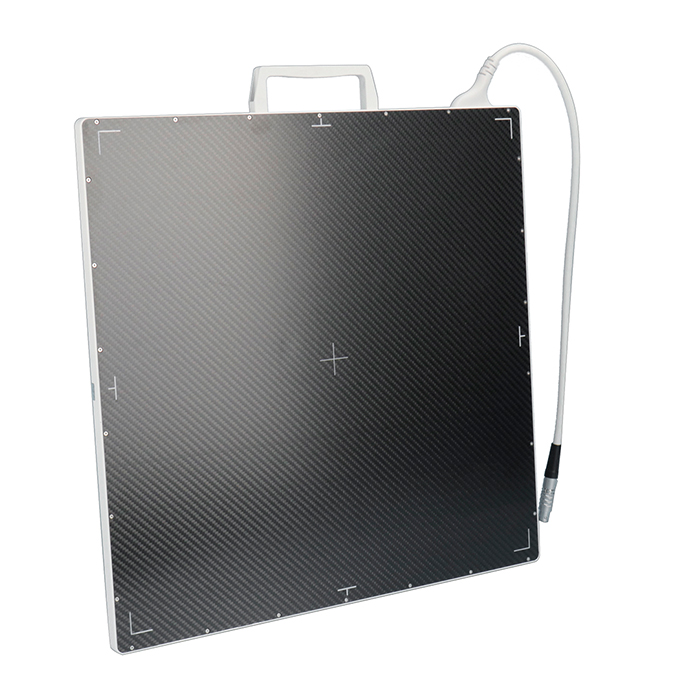

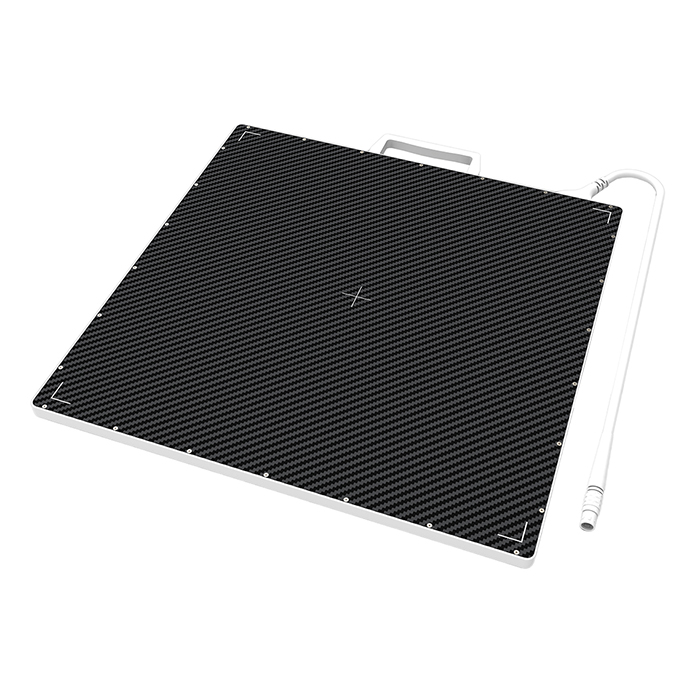

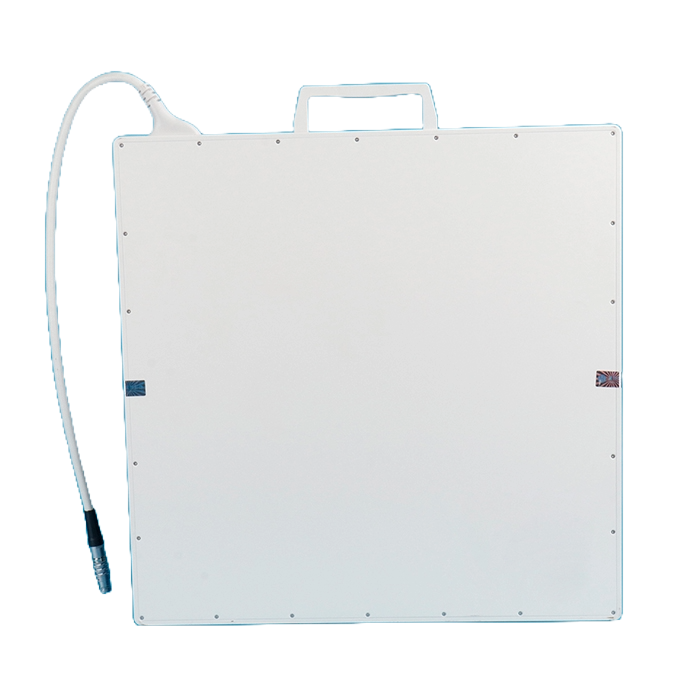

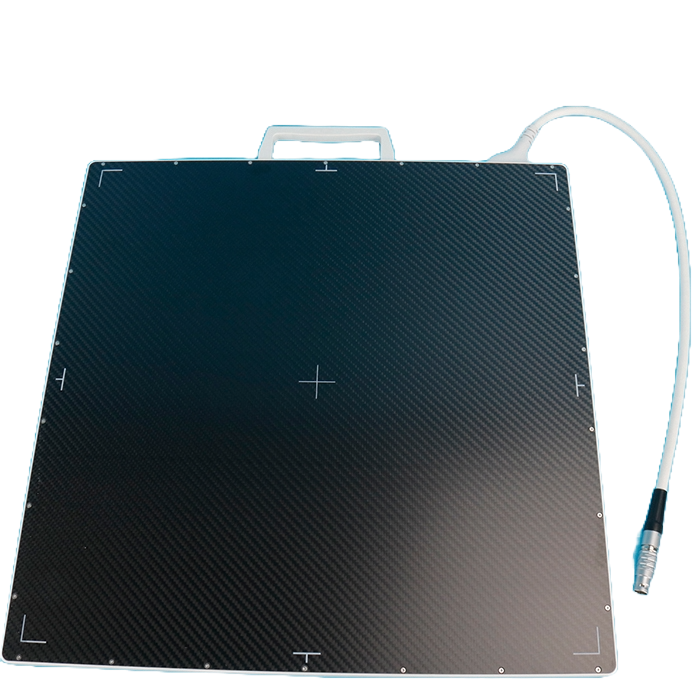

Flat Panel Detector VA FP33
€ 9.800,00
The 17×17 inch digital X-ray flat panel detector delivers high-resolution, low-dose imaging for medical, veterinary, and industrial applications. Featuring A-Si technology, CsI scintillator, and multi-gain functionality, it offers fast image acquisition, wide dynamic range, and reliable performance for modern digital radiography (DR) systems. Lightweight, durable, and compatible with Windows-based software, it ensures precise diagnostics every time.
17×17 Inch Digital X-Ray Flat Panel Detector – High-Resolution DR Technology
High-Performance Detector for Digital Radiography in Medical & Veterinary Applications
The 17×17 inch digital X-ray flat panel detector with advanced A-Si (Amorphous Silicon) technology delivers exceptional image quality, high reliability, and a wide dynamic range. Equipped with a CsI scintillator, 16-bit ADC, and multi-gain technology, this DR detector is ideal for medical radiography, veterinary imaging, industrial inspection, and research applications.
With a large active area of 430 × 430 mm, the detector provides precise imaging at low doses – perfect for modern digital radiography (DR) systems.
Key Benefits of the Digital X-Ray Detector
- ✔ High-resolution digital X-ray imaging up to 3.5 lp/mm
- ✔ Large active area (17×17 inches) for versatile applications
- ✔ Low dose & high DQE for patient- and animal-friendly imaging
- ✔ Fast image acquisition ≤ 1 second
- ✔ Lightweight and durable design with carbon fiber protection
- ✔ Gigabit Ethernet for stable and fast data transfer
- ✔ Long lifespan with high radiation resistance
Advanced DR Technology for Precise Diagnostics
The digital X-ray detector combines amorphous silicon (A-Si) sensors with a CsI scintillator, delivering high sensitivity and excellent image sharpness. Its multi-gain stage allows both highly sensitive low-dose imaging and detailed high-dynamic-range captures.
With a DQE of up to 58% and a dynamic range ≥ 86 dB, this detector meets the highest standards in digital radiography diagnostics.
Typical Applications
- 🏥 Medical digital radiography (human healthcare)
- 🐾 Veterinary imaging (small & large animals)
- 🏭 Industrial X-ray / non-destructive testing (NDT)
- 🔬 Research & development

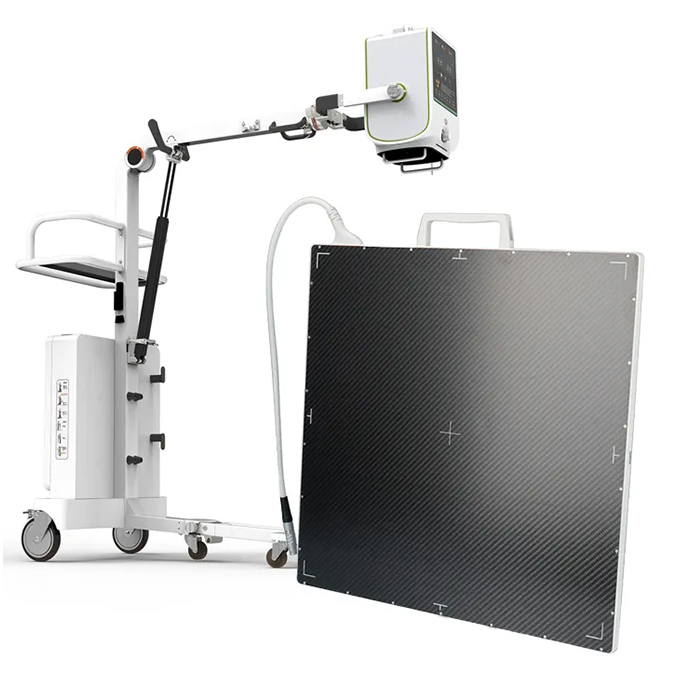

- 🚑 Mobile & stationary DR X-ray systems
Technical Highlights
- Pixel Matrix: 3072 × 3072
- Pixel Pitch: 140 µm
- Energy Range: 40 – 160 kV
- SNR: 48 dB
- MTF: up to 70% @ 1 lp/mm
- Housing Material: High-strength aluminum alloy
- Weight: only 4.6 kg
User-Friendly & Compatible
The detector is compatible with Windows 7 & Windows 10 (32/64 Bit) & Windows 10 (64 Bit) and supports multiple languages, including English, German, French, Spanish, Portuguese, Polish, Russian, and Chinese. Software-based calibration ensures easy integration into existing digital radiography systems.
Conclusion: Future-Proof Digital Radiography
This 17×17 inch digital X-ray flat panel detector combines high image quality, durable construction, and modern DR technology. It is the ideal solution for professionals seeking accurate diagnostics, efficient workflow, and reliable digital X-ray performance.
👉 Request a quote today and take your digital radiography to the next level.
