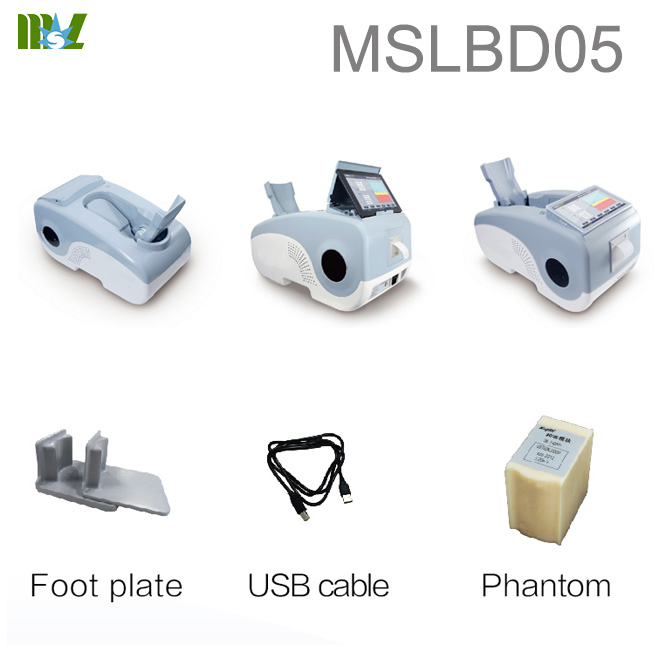

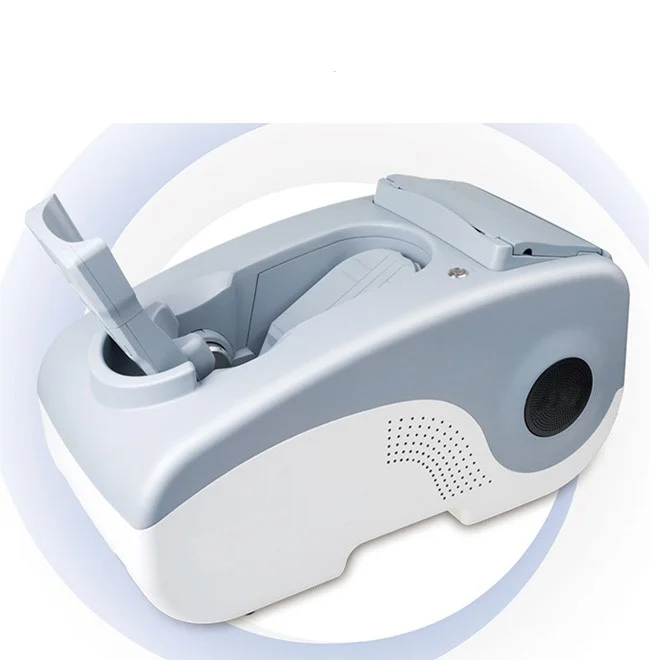

Bone Densitometer ecoRAY BD05
€ 4.900,00
ecoRAY BD05 is a compact, radiation-free ultrasound bone densitometer designed for fast and reliable osteoporosis screening. Using quantitative ultrasound (QUS) technology, it measures bone quality at the calcaneus and delivers clear T-Score and Z-Score results within seconds. The ecoRAY BD05 is easy to operate, highly reproducible, and ideal for medical practices, clinics, and preventive health programs.
Radiation-Free Ultrasound Bone Densitometer for Osteoporosis Screening
The ecoRAY BD05 is a modern ultrasound bone density scanner designed for fast, safe, and radiation-free assessment of bone quality. Based on quantitative ultrasound technology (QUS), the ecoRAY BD05 is an ideal solution for osteoporosis screening, prevention, and follow-up examinations in medical practices, clinics, rehabilitation centers, and health screening facilities.
Thanks to its non-invasive ultrasound method, the ecoRAY BD05 allows repeated bone density measurements without X-ray exposure, ensuring maximum patient safety and comfort.
Key Benefits of the ecoRAY BD05
- Radiation-free ultrasound bone density measurement
- Fast examination time (approx. 20–25 seconds per scan)
- High accuracy and excellent measurement reproducibility
- Automatic calibration for reliable results
- User-friendly software and intuitive operation
- Compact design with low space requirements
- Ideal for screening and long-term monitoring
Measurement Technology & Diagnostic Parameters
The ecoRAY BD05 uses Quantitative Ultrasound (QUS) technology to evaluate bone quality, typically at the calcaneus (heel bone). The system analyzes multiple clinically established parameters:
- SOS (Speed of Sound) – ultrasound velocity through bone
- BUA (Broadband Ultrasound Attenuation) – frequency-dependent attenuation
- Bone Index (OI / BMI) – combined indicator of bone strength
Measurement results are automatically calculated and displayed as T-Score and Z-Score, supporting clinical interpretation and patient counseling.
Software & Reporting
- Integrated measurement and analysis software
- Adult and age-related reference databases
- Clear graphical result presentation
- Printable diagnostic reports (A4 format)
- Patient data storage and export capabilities
- Compatible with standard PC systems
Technical Specifications (Overview)
- Measurement method: Quantitative Ultrasound (QUS)
- Measurement time: ≤ 25 seconds
- Ultrasound frequency: approx. 0.5 MHz
- Precision: High repeatability (OPR ≤ ±1%)
- Calibration: Automatic
- Power supply: AC 220 V / 50 Hz
- Weight: approx. 13 kg
Clinical Applications
- Osteoporosis screening and risk assessment
- Preventive health examinations
- Follow-up and monitoring of bone health
- Rehabilitation and preventive medicine
- Community and workplace health programs
Important Notice
The ecoRAY BD05 is an ultrasound bone densitometer intended primarily for screening and monitoring purposes. It does not replace DXA measurements in all diagnostic scenarios but provides a safe, efficient, and cost-effective alternative for many clinical and preventive applications.
SEO Keywords (integrated naturally)
ultrasound bone densitometer, bone density scanner, osteoporosis screening device, radiation-free bone density test, QUS bone density machine, calcaneal bone densitometer, portable bone density analyzer
