Flat Panel Detector IRAY FP38
€ 9.600,00

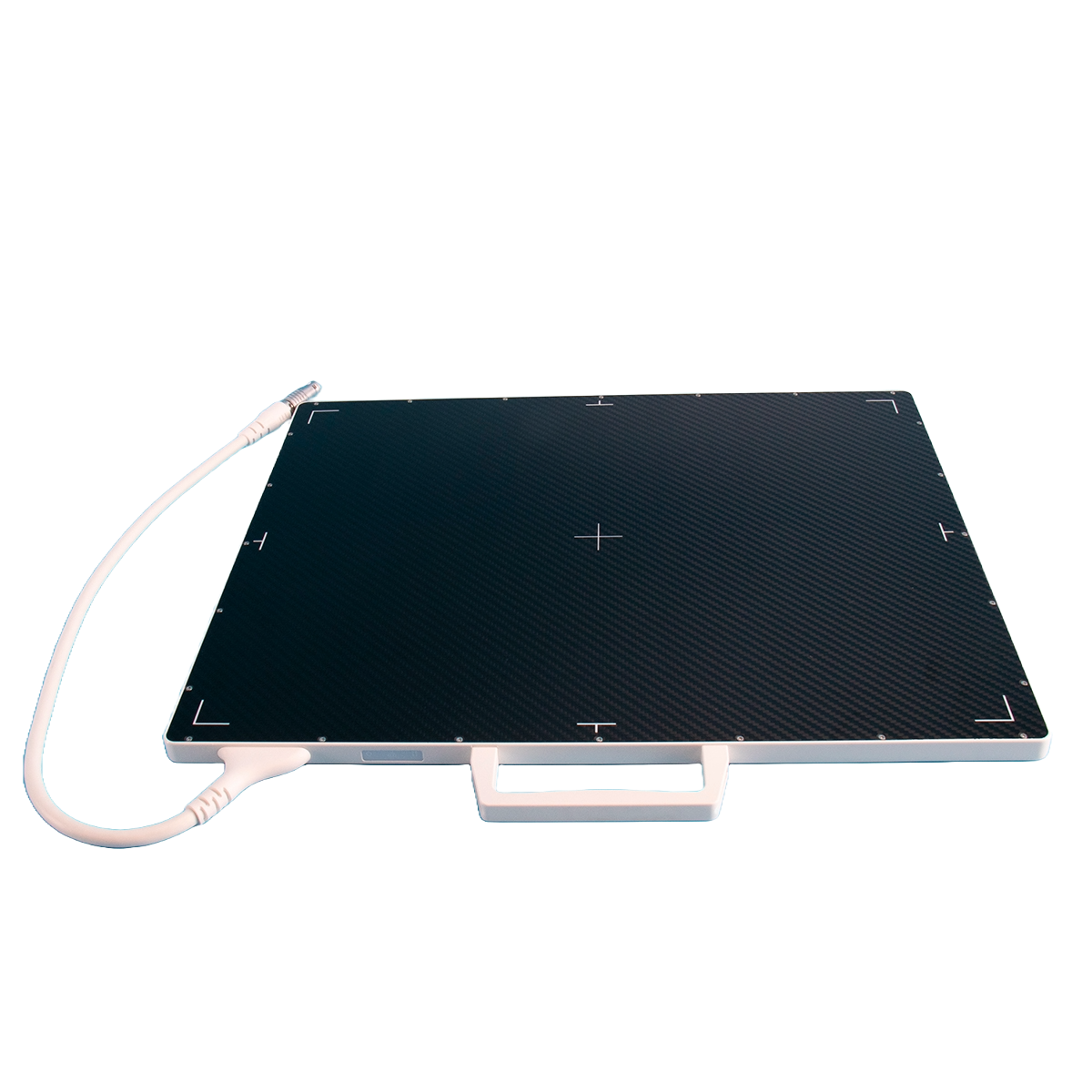

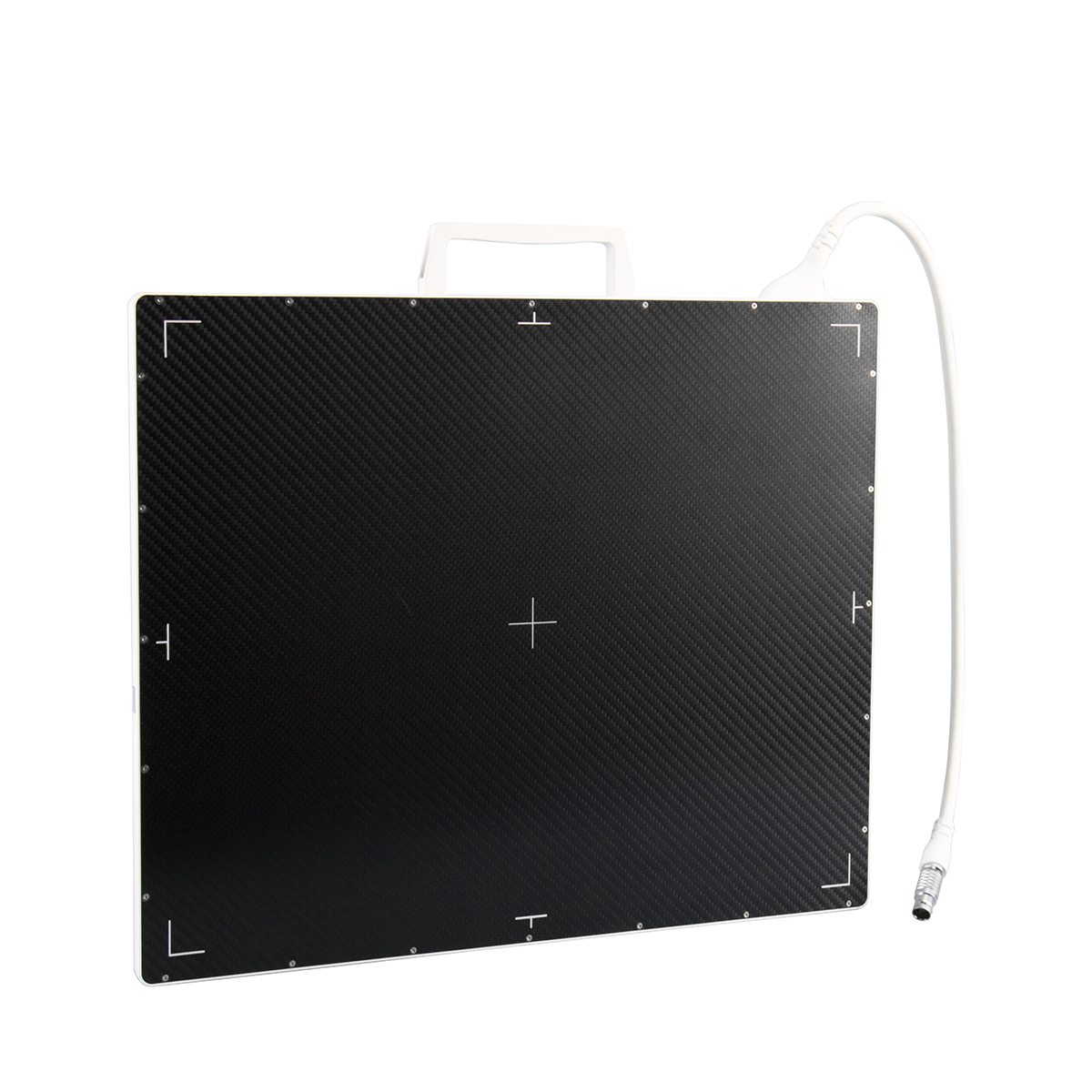

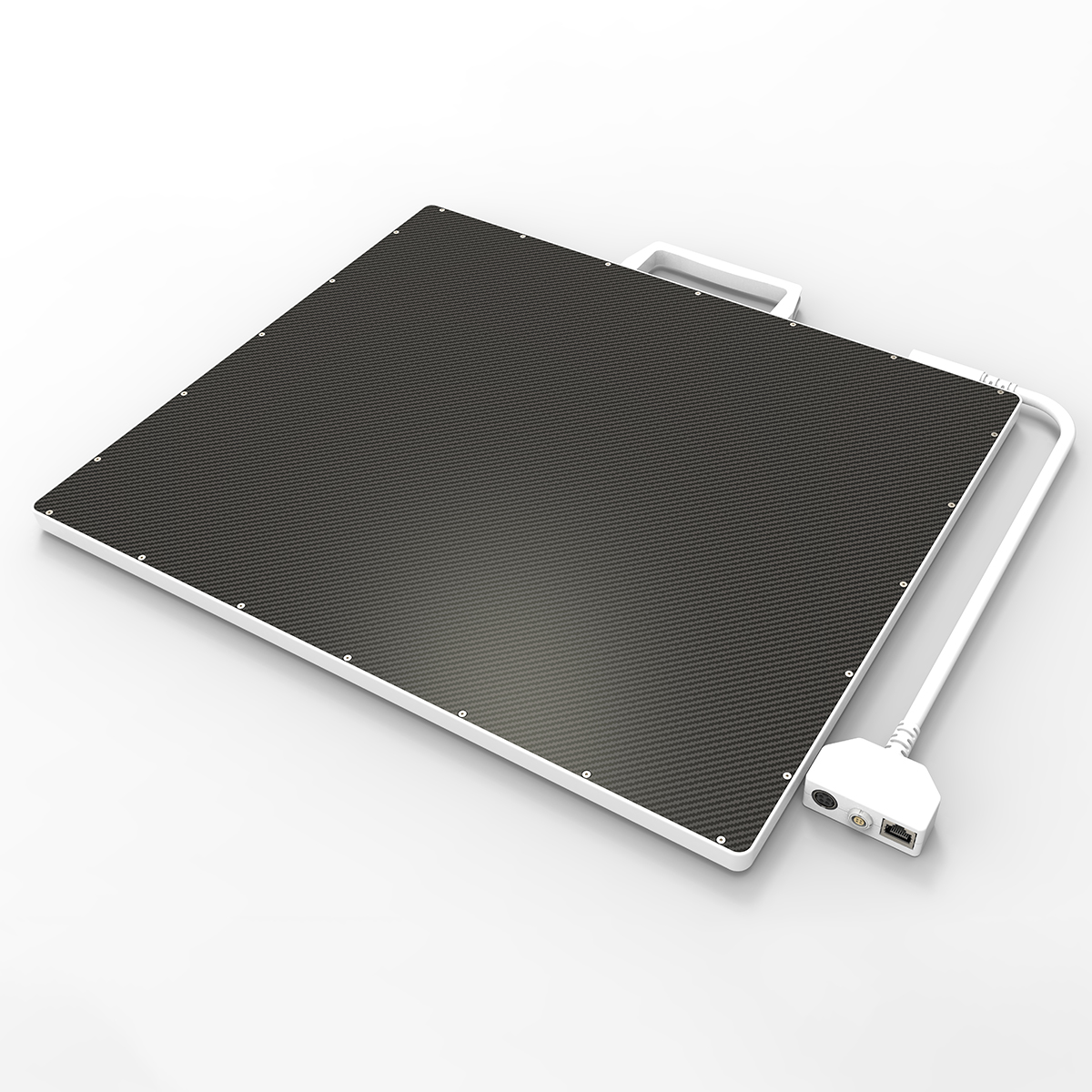

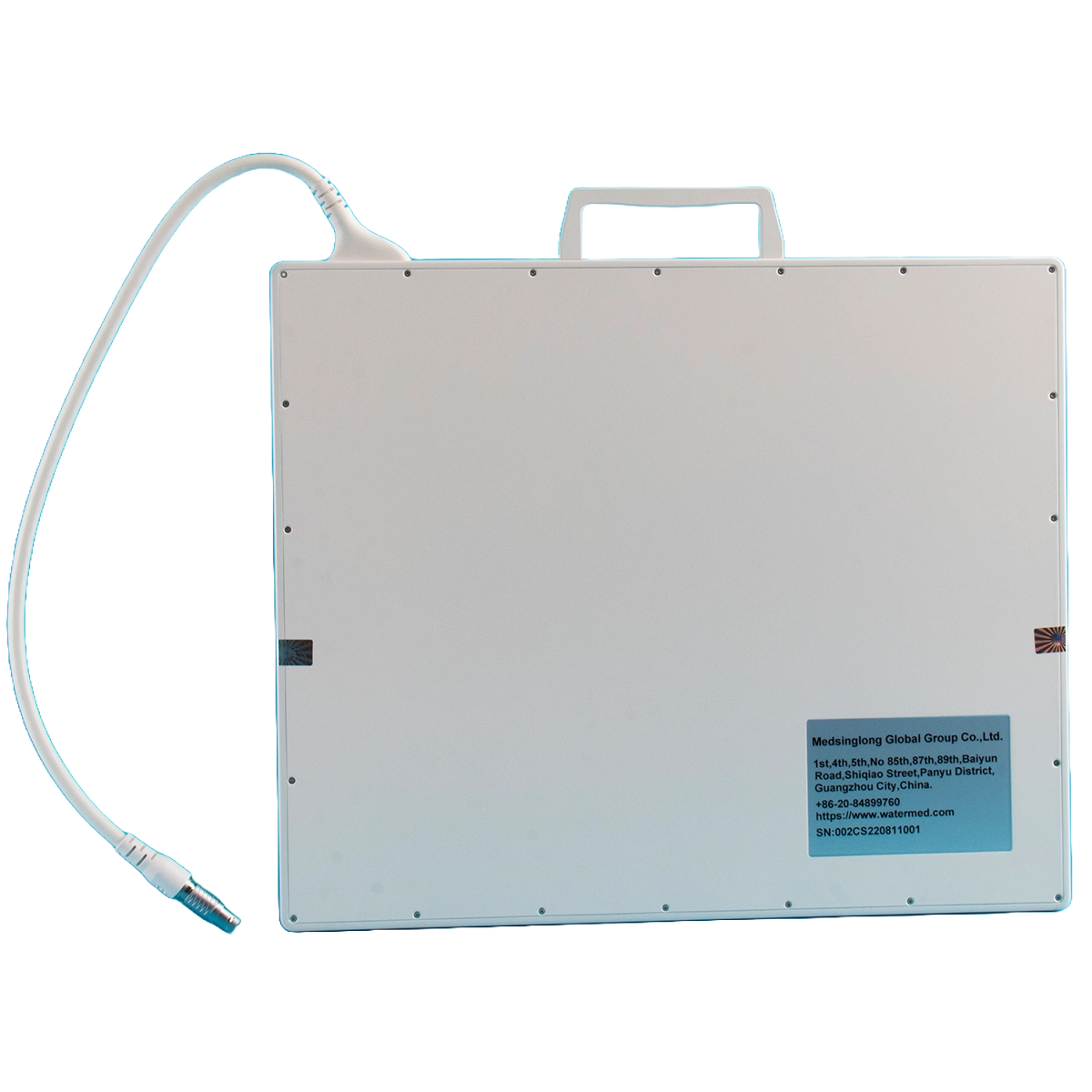

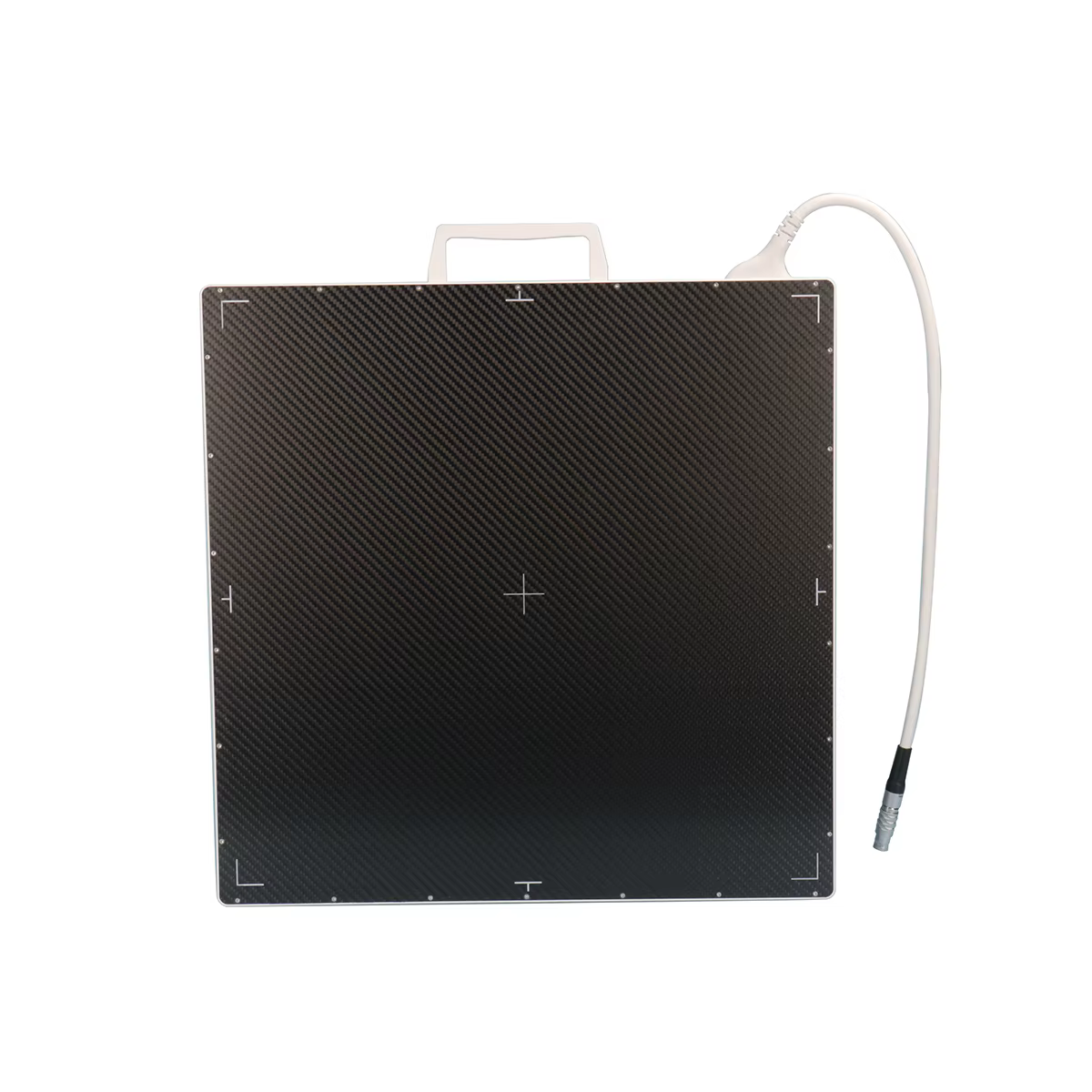

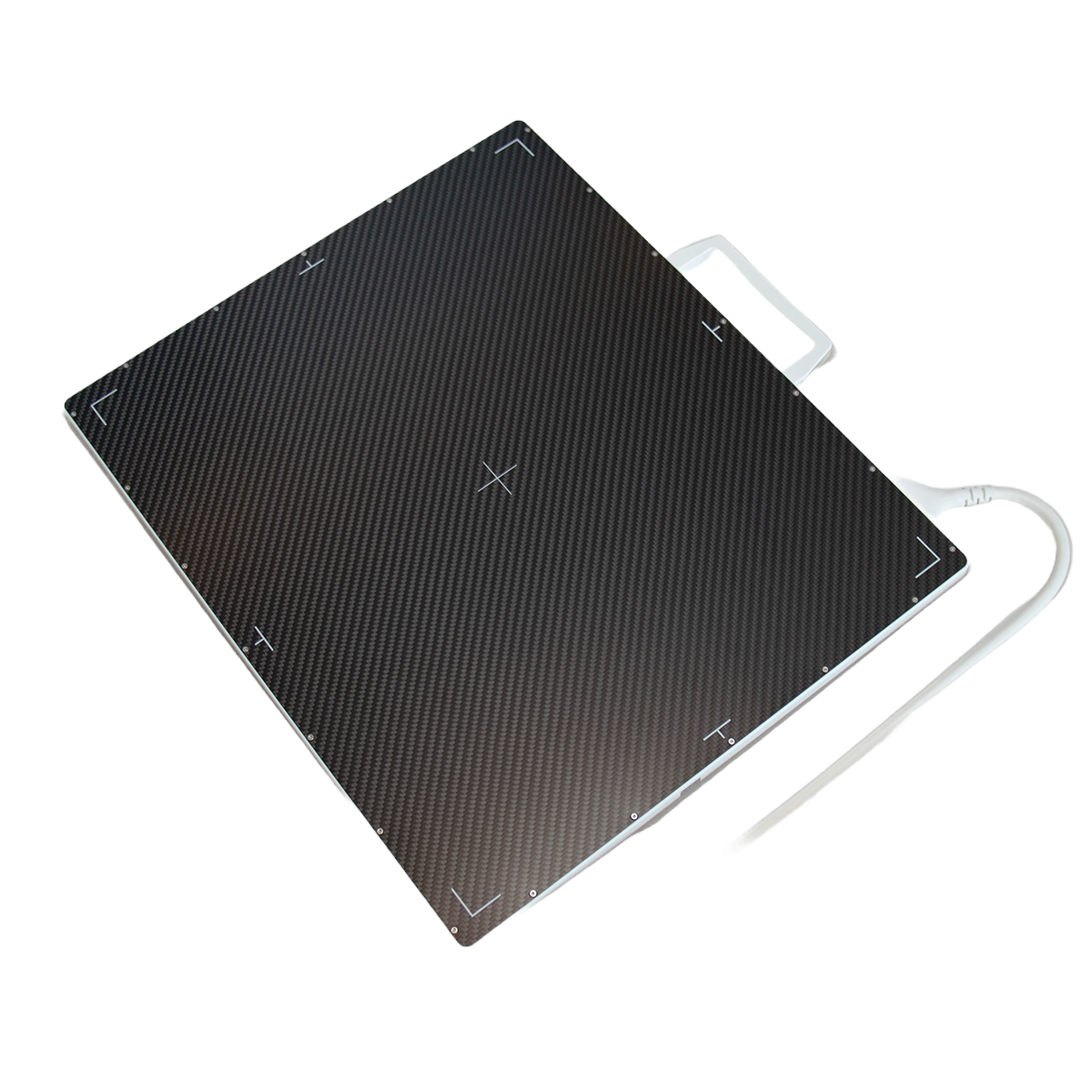

IRAY FP38 – Portable Digital X-Ray Detector
The IRAY FP38 is a high-resolution, portable flat panel X-ray detector suitable for human medical, veterinary, industrial, and research applications. Equipped with Amorphous Silicon (A-Si) technology and a CsI scintillator, it delivers clear, detailed images with high sensitivity and a wide dynamic range. Lightweight and durable, the IRAY FP38 ensures reliable performance in any environment.
Key Specifications:
-
Detector Technology: Amorphous Silicon (A-Si)
-
Scintillator: CsI
-
Active Area: 427 mm x 427 mm
-
Resolution: 3072 x 3072 pixels
-
Pixel Pitch: 139 µm
-
AD Conversion: 16-bit
-
Trigger Mode: AED / Software / Prep
-

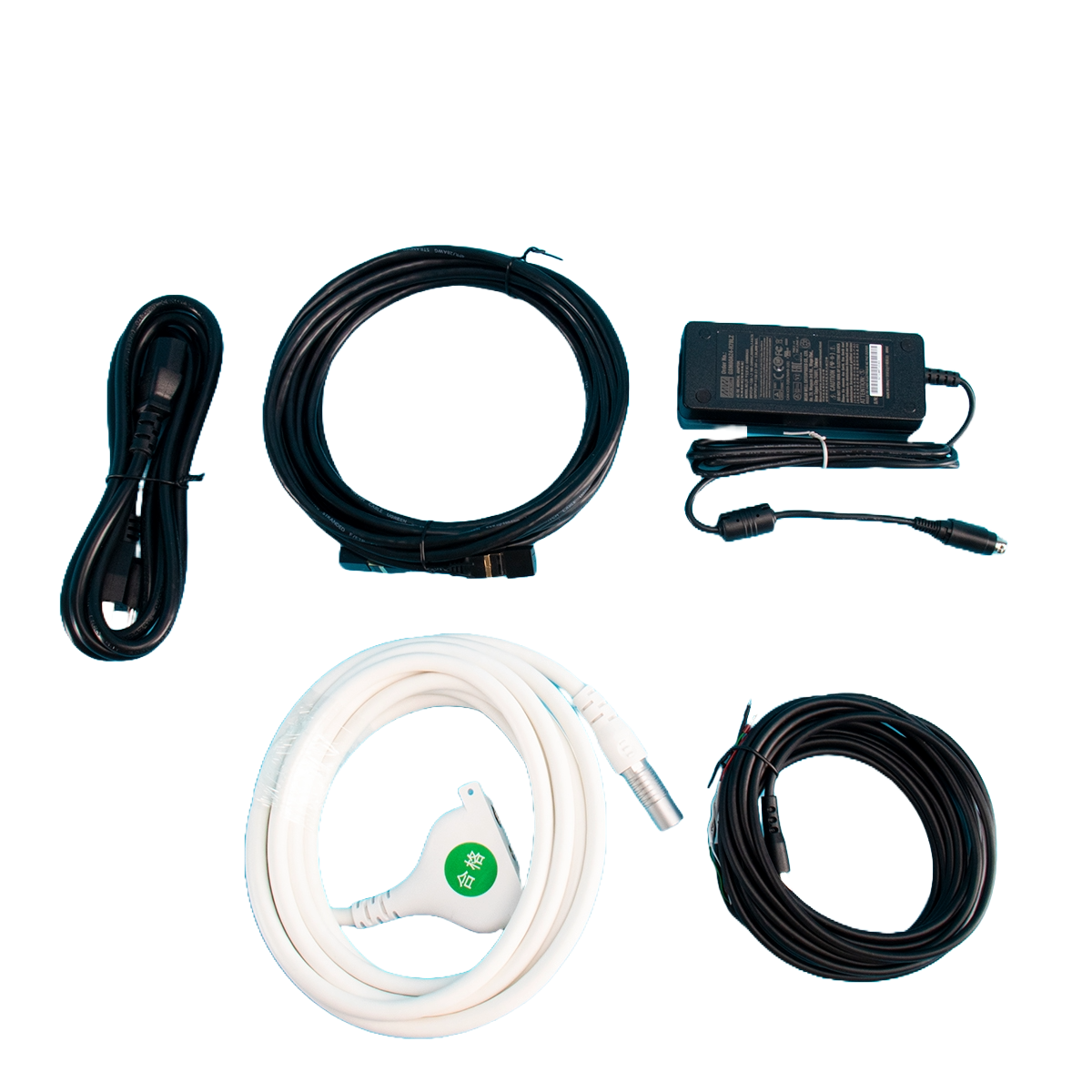

Data Interface: Wired (1+6 m compound cable)
-
Dimensions: 460 x 460 x 15 mm
-
Weight: < 4 kg (without handle and cable)
-
Weight Capacity: 150 kg uniformly
IRAY FP38 – portable, precise, and versatile for digital X-ray imaging wherever it’s needed.
Portable Digital X-Ray Detector IRAY FP38 – High-Resolution for Human and Veterinary Use
IRAY FP38 – Accurate digital X-ray imaging anytime, anywhere
The IRAY FP38 digital X-ray detector is a portable, wired flat panel detector designed for human medical, veterinary, industrial, and research applications. Built on Amorphous Silicon (A-Si) technology, the IRAY FP38 delivers exceptional image quality, high sensitivity, and a wide dynamic range, unmatched by conventional detector technologies.
Key Features:
- Detector Technology: A-Si flat panel with CsI scintillator for superior image clarity
- Active Area: 427 mm x 427 mm
- Resolution: 3072 x 3072 pixels with 139 µm pixel pitch
- AD Conversion: 16-bit for precise grayscale imaging
- Trigger Modes: AED, software, or prep mode
- Data Interface: Wired via 1+6 m compound cable for stable data transmission
- Portability: Compact (460 x 460 x 15 mm), lightweight (<4 kg)
- Weight Capacity: Supports up to 150 kg evenly
- Multi-Gain Function: Optimized for both high sensitivity and wide dynamic range
Benefits of IRAY FP38:
- High Image Quality – clear, detailed X-ray images for accurate diagnosis
- Versatile Use – perfect for clinical diagnostics, veterinary medicine, industrial applications, and research
- Portable and Lightweight – easy to deploy in different environments
- Robust and Reliable – durable design with 150 kg load capacity for daily use
With the IRAY FP38 flat panel detector, medical professionals and veterinarians can quickly, efficiently, and reliably capture digital X-ray images, without the need for large stationary systems.
Technical Specifications:
| Parameter | Details |
|---|---|
| Detector Technology | Amorphous Silicon (A-Si) |
| Scintillator | CsI |
| Active Area | 427 mm x 427 mm |
| Number of Pixels | 3072 x 3072 |
| Pixel Pitch | 139 µm |
| AD Conversion | 16-bit |
| Trigger Mode | AED / Software / Prep |
| Data Interface | Wired (Compound Cable) |
| Dimensions | 460 x 460 x 15 mm |
| Weight | <4 kg (without handle and cable) |
| Cable | 1+6 m compound cable |
| Weight Capacity | 150 kg uniformly |
Related products
-
Bone densitometer: Medikors InAlyzer AIR
€ 24.000,00Add to cartRevolutionize Your Osteoporosis Diagnostics with the Medikors InAlyzer AIR
Discover the future of bone density measurement with the Medikors InAlyzer AIR – a compact DEXA system that delivers high-resolution scans and digital radiography in one sleek device. Switch views instantly and get precise, actionable results at the push of a button.
Its world-first open design maximizes scanning space while keeping the footprint minimal – perfect for small clinics (1850 × 800 mm) without compromising a generous scanning area (490 × 900 mm). Work smarter, reduce radiation exposure, and streamline your workflow for faster, safer, and more efficient patient care.
-
VET DX-V1 – Digital Veterinary X-Ray System
€ 19.800,00Add to cartVET DX-V1 – Digital Veterinary X-Ray System
The VET DX-V1 is a modern digital veterinary X-ray system, ideal for animal clinics and veterinary practices. It combines high-resolution imaging, intuitive software, flexible patient positioning, and fast diagnostics. With a powerful X-ray generator, Toshiba X-ray tube, Careview flat-panel detector, and touchscreen control computer, it enables precise diagnoses, efficient workflows, and safe patient care.
Category Parameter Specification Generator Power Supply Voltage Single-phase 3-wire 220V ±22V Supply Frequency 50Hz ±1Hz Rated Power 32 kW Max Output Current 400 mA Operating Frequency ≥300 Hz Current Regulation Range 10 mA ~ 400 mA Tube Voltage Range 40 kV ~ 150 kV Exposure Time 0.001 s ~ 10.0 s Current-Time Product 0.1 mAs ~ 320 mAs X-Ray Tube Maximum Peak Voltage 125 kV Spot Focus Small: 1.0 mm / Large: 2.0 mm Anode Power 21 kW / 42.5 kW Anode Speed 2700 rpm Target Angle 16° Anode Heat Capacity 140 KHU Table Table Size 1400 mm × 600 mm Total Height 1960 mm Max Travel Front-Back 150 mm Max Travel Left-Right 220 mm Flat Panel Detector Sensor / Scintillator Amorphous Silicon / Cesium Iodide Imaging Area 430 × 430 mm² Pixel Array 3072 × 3072 Pixel Size 140 μm A/D Conversion 16-bit Limiting Resolution 3.57 Ip/mm Maximum Linear Dose 70 μGy Dynamic Range >80 dB Image Readout Time 2–4 s Veterinary Software Interface 16 languages, worklist supported Data Acquisition DICOM Worklist, BDT/CDT, HL7 or manual acquisition Image Tools Unlimited zoom, rotation, mirroring, measurement tools Emergency Registration Quick and secure patient registration Image Processing Window/Level, gamma, filters, noise reduction Measurement Functions TPLO, TTA, HD, etc. Export Formats PNG, TIFF, BMP, DICOM Presets Over 400 programs, freely customizable PACS Integration Yes -

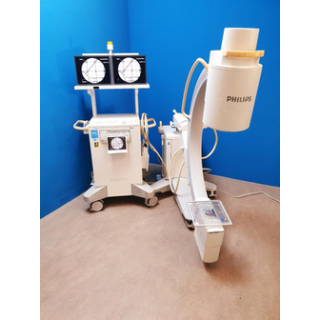

PHILIPS BV LIBRA – Mobile C-Arm for Your Clinic
