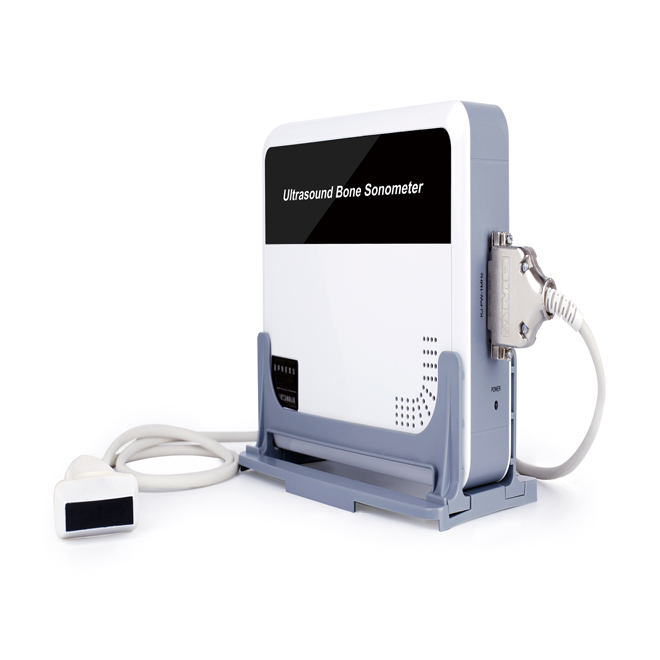

Bone Densitometer ecoRAY BD10
€ 4.650,00
The ecoRAY BD10 ultrasound bone densitometer provides fast and precise bone density measurements for children, adults, and seniors. Its compact design, USB connection, and plug & play setup make it ideal for clinics, medical offices, and health centers. Fully automated analysis delivers T-score, Z-score, bone age, and fracture risk. Multi-ethnic reference databases ensure reliable results for all age groups.
ecoRAY BD10 Ultrasound Bone Densitometer – Accurate & Fast
Product Description
The ecoRAY BD10 ultrasound bone densitometer is a state-of-the-art bone sonometer designed to provide fast, precise, and reliable bone density measurements. Ideal for clinics, hospitals, and health centers, it combines ease of use with high accuracy, suitable for children, adults, and seniors.
Its compact design and USB connectivity allow seamless integration with desktop computers, laptops, or tablets, making it a truly plug & play device.
Quick Details
- Ultrasound Probe: Broadband probe, 1.00 MHz, error range ±15%, actual results within ±4%
- Bone Sound Velocity (SOS) Range: 2100–4800 m/s
- Calibration: Includes random calibration module test
- PC Connection: USB interface, plug & play
- Fast Measurement: Single-point <1 second, full measurement ≤25 seconds, repeated ≤75 seconds
- Accuracy: SOS ≤ ±1.5% (actual ≤0.36%), repeatability ≤0.15% (actual ≤0.10%)
- Databases: Multi-ethnic and Asian reference databases
Features & Benefits
- Lightweight & Portable: Compact, elegant, and easy to transport.
- Versatile: Suitable for radius or tibia measurement.
- Reliable Results: Unaffected by soft tissue thickness, bone size, or skeletal shape.
- Wide Applicability: Supports databases from Asia, Europe, and other regions, suitable for all ages.
- Automated Analysis: Provides T-score, Z-score, bone age, fracture risk, bone strength index, and more automatically.
Specifications
| Parameter | Adults | Children |
|---|---|---|
| Age Range | 20–100 years | 0–20 years |
| Analysis | T-score, Z-score, age ratio, PAB, RRF, BQI, EOA | Z-score, PAB, height prediction, obesity, BMI |
| Ultrasound SOS Accuracy | ≤ ±0.36% | ≤ ±0.36% |
| Measurement Time | <1 second (single point), ≤25 sec (single), ≤75 sec (repeated) | <1 second (single point), ≤25 sec (single), ≤75 sec (repeated) |
| Interface | USB, Plug & Play | USB, Plug & Play |
| Database | Multi-ethnic & Asian | Multi-ethnic & Asian |
Why Choose ecoRAY BD10?
- Accurate bone density measurement for all age groups
- Fast & Efficient: Measurements in seconds
- Portable & User-Friendly: Ideal for mobile clinics or health check-ups
- Comprehensive Analysis: Full evaluation of fracture risk and bone health
- Multi-Regional: Supports multiple ethnic reference databases
Get Yours Now!
Buy the ecoRAY BD10 now and get precise, reliable bone density analysis!
