XRay Detector Venu 1748V
€ 42.800,00
Venu 1748V is a wired flat panel detector designed for full-leg and spine imaging. With a large active area of 43 × 122 cm (17 × 48 inches), it enables complete spine acquisition in a single exposure. The detector features a 139 μm pixel pitch, CsI scintillator, and 16-bit ADC, delivering high-resolution images with excellent contrast. Automatic Exposure Detection (AED) and stable iSync technology ensure a fast and efficient workflow. Its slim design and removable handle support easy handling in daily clinical use.
Of course. Below is a professional English product landing page text, suitable for a medical or radiology-focused website. The tone is clear, technical, and marketing-oriented.

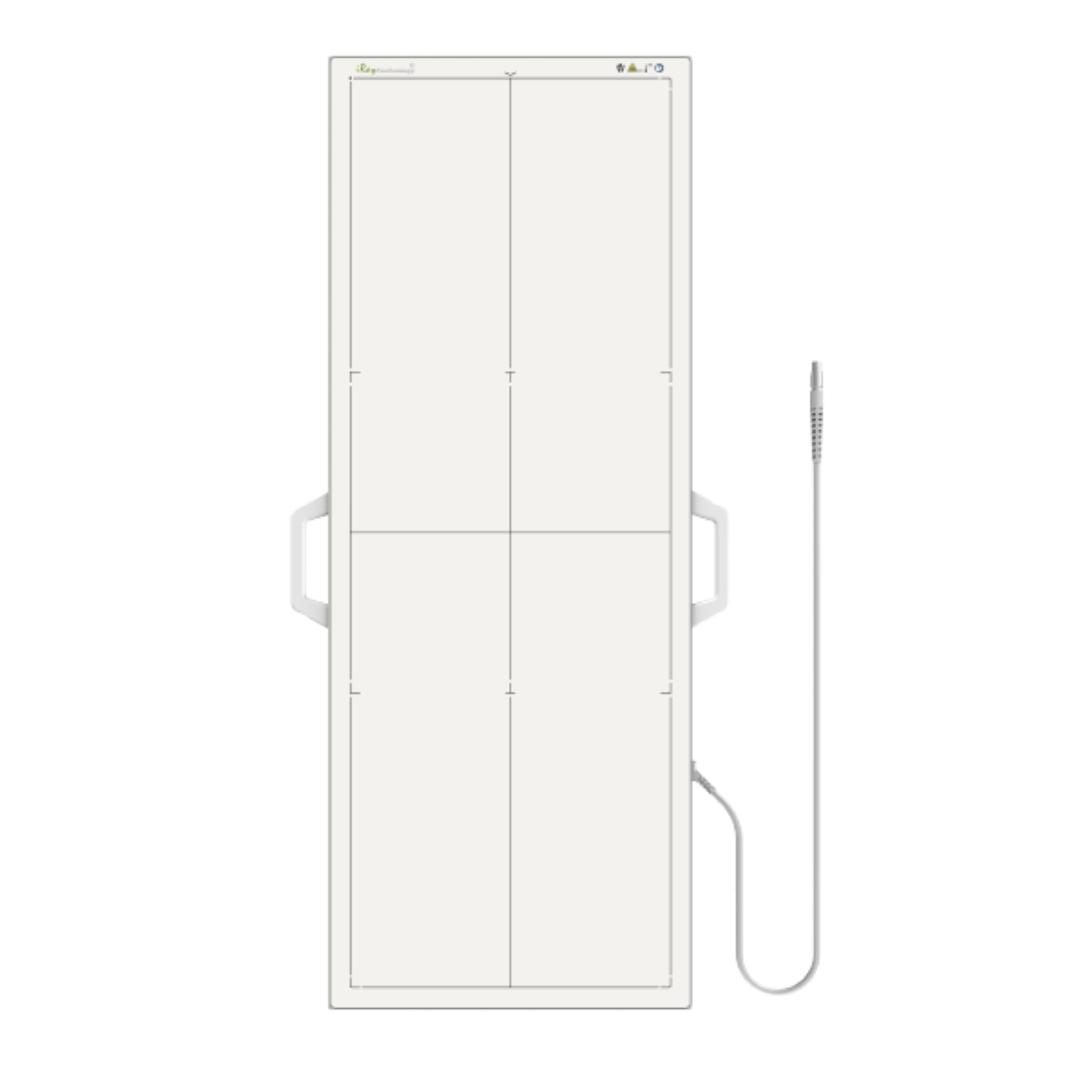

Venu 1748V
Detector for Full-Leg and Spine Imaging
Precision. Efficiency. Exceptional Image Quality.
The wired Venu 1748V is the ideal solution for full-leg and spine imaging. Thanks to its extra-large active imaging area, the detector enables complete spine imaging with a single exposure, ensuring efficient workflows and reliable diagnostic results.
Optimized for Full-Leg and Spine Examinations
With a detector size of 43 × 122 cm (17 × 48 inches), the Venu 1748V is specifically designed for demanding orthopedic and radiological applications. Time-consuming image stitching and multiple exposures are no longer necessary.
Outstanding Image Quality
The Venu 1748V delivers excellent image performance using advanced detector technology:
- 139 μm pixel pitch for high spatial resolution
- CsI scintillator for high sensitivity and superior image sharpness
- 16-bit ADC for enhanced contrast and fine grayscale details
The result: sharp, high-contrast images for confident and accurate diagnosis.
Efficient Clinical Workflow
The detector supports fast and streamlined imaging processes in daily clinical practice:
- Automatic Exposure Detection (AED)
- Stable iSync technology
- Complete spine imaging in a single exposure
This reduces examination time and patient dose while increasing overall productivity.
Ergonomic and Robust Design
- Removable handle for easy positioning and handling
- Slim design for flexible system integration
- Durable construction for reliable daily use
Technical Specifications
- Model: Venu 1748V
- Detector size: 43 × 122 cm (17 × 48 inches)
- Pixel pitch: 139 μm
- A/D conversion: 16 bit
- Scintillator: CsI
- Dimensions (W × H × D): 1,271 × 487 × 21 mm
- Weight: approx. [to be specified]
- Connection: wired
Key Benefits at a Glance
✔ Single exposure for complete spine imaging
✔ Excellent image quality for precise diagnostics
✔ Efficient workflow and reduced exam time
✔ Ideal for orthopedic, radiology, and spine imaging applications
