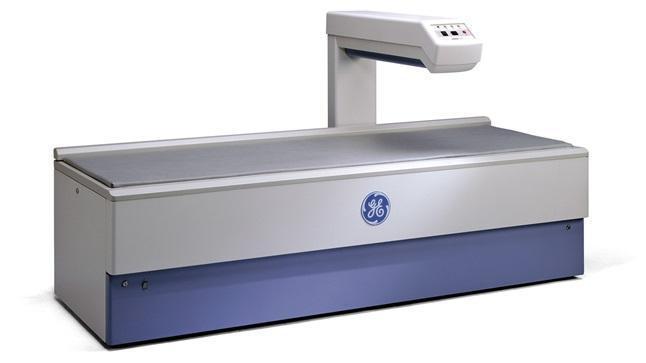

Bone Densitometer GE LUNAR DPX-NT (DXA)
€ 12.000,00
**GE LUNAR DPX-NT – Bone Densitometry System (DXA)**
The **GE LUNAR DPX-NT** is a reliable DXA-based bone densitometry system designed for accurate measurement of bone mineral density with low radiation exposure. It is suitable for routine osteoporosis diagnostics and follow-up examinations in clinics and medical practices.
**Technical Specifications (Short Overview):**
* **Technology:** DXA (Dual-Energy X-Ray Absorptiometry, Pencil Beam)
* **Measurement areas:** AP spine, hip (femur), forearm, optional whole body
* **Software:** GE enCORE with automated analysis and reporting
* **Scan time:** Approx. 5–8 minutes per examination
* **Maximum patient weight:** Approx. 136 kg
* **Connectivity:** DICOM, HL7, PACS compatible
* **Power supply:** 120–240 V, 50/60 Hz
* **System weight:** Approx. 272 kg
* **Radiation dose:** Low-dose, patient-friendly X-ray technology
Ideal for efficient, precise, and reproducible bone density measurements in daily clinical use.
🦴 Product Overview
The GE LUNAR DPX-NT is a professional bone densitometry system based on proven DXA technology (Dual-Energy X-Ray Absorptiometry). It is designed for precise measurement of bone mineral density (BMD) and supports healthcare professionals in the diagnosis and monitoring of osteoporosis, fracture risk assessment, and overall bone health analysis.
Reliable, accurate, and user-friendly, the GE LUNAR DPX-NT is well suited for use in hospitals, diagnostic centers, and specialized medical practices.
⭐ Key Benefits
✔ High-precision DXA measurements
Dual-energy X-ray absorptiometry ensures accurate and reproducible results with low radiation exposure.
✔ Wide range of examinations
Suitable for spine, hip, forearm, and optional whole-body analysis.
✔ Intuitive enCORE software
User-friendly operation with automated analysis and professional report generation.
✔ Fast scan times
Typical examination time of approximately 5–8 minutes per scan, improving patient throughput.
✔ System compatibility
Supports DICOM and HL7 for seamless integration into PACS and clinical IT systems.
✔ Patient-friendly design
Comfortable patient positioning and minimal radiation dose for routine diagnostics.
🧠 Technical Specifications
| Feature | Specification |
|---|---|
| Technology | DXA (Dual-Energy X-Ray Absorptiometry, Pencil Beam) |
| Examination areas | AP Spine, Femur (single/dual), Forearm, Whole Body |
| Software | GE enCORE software with SmartScan, AutoAnalysis, Composer reporting |
| Connectivity | DICOM, HL7, PACS integration |
| Maximum patient weight | Approx. 136 kg |
| Dimensions (W × D × H) | Approx. 2.42 m × 1.03 m × 1.28 m |
| System weight | Approx. 272 kg |
| Power supply | 120–240 V, 50/60 Hz |
| X-ray source | Low-dose X-ray tube for patient safety |
🩺 Typical Clinical Applications
- Osteoporosis screening and follow-up
- Fracture risk assessment
- Therapy monitoring
- Optional body composition analysis
- Use in clinics, practices, and diagnostic centers
💻 Software & Workflow Highlights
The integrated GE enCORE software provides:
- Intuitive user interface with integrated help tools
- Automatic anatomy recognition (SmartScan)
- Optimized scan regions and positioning guidance
- Customizable professional reports (Composer)
- Comprehensive patient data management and multi-user support
📦 Scope of Delivery & Optional Accessories
- GE LUNAR DPX-NT main system
- enCORE software package
- DICOM / HL7 interfaces
- Patient table and positioning aids (optional)
📈 Why Choose the GE LUNAR DPX-NT?
The GE LUNAR DPX-NT combines clinical accuracy, reliable technology, and efficient workflows. It is an excellent solution for medical facilities seeking dependable bone density diagnostics with proven GE Healthcare quality.
📞 Consultation & Quotation
Looking for pricing, financing options, or a customized configuration?
Contact us today for a personal consultation and tailored offer.
