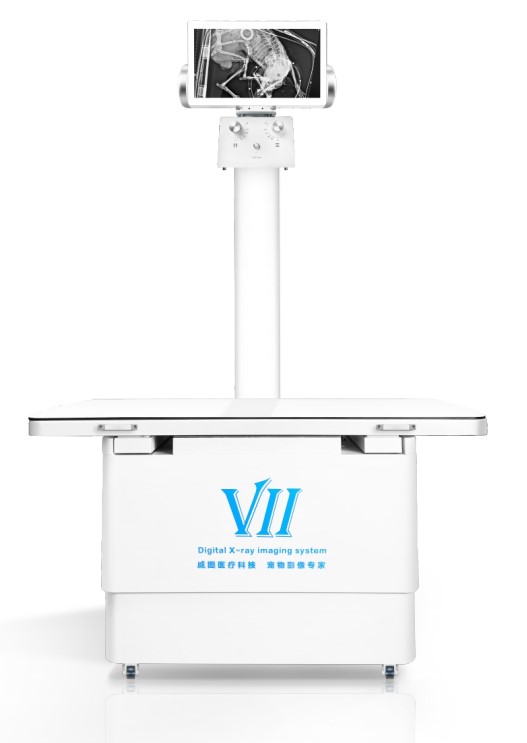

VET DX-V1 – Digital Veterinary X-Ray System
€ 19.800,00
VET DX-V1 – Digital Veterinary X-Ray System
The VET DX-V1 is a modern digital veterinary X-ray system, ideal for animal clinics and veterinary practices. It combines high-resolution imaging, intuitive software, flexible patient positioning, and fast diagnostics. With a powerful X-ray generator, Toshiba X-ray tube, Careview flat-panel detector, and touchscreen control computer, it enables precise diagnoses, efficient workflows, and safe patient care.
| Category | Parameter | Specification |
|---|---|---|
| Generator | Power Supply Voltage | Single-phase 3-wire 220V ±22V |
| Supply Frequency | 50Hz ±1Hz | |
| Rated Power | 32 kW | |
| Max Output Current | 400 mA | |
| Operating Frequency | ≥300 Hz | |
| Current Regulation Range | 10 mA ~ 400 mA | |
| Tube Voltage Range | 40 kV ~ 150 kV | |
| Exposure Time | 0.001 s ~ 10.0 s | |
| Current-Time Product | 0.1 mAs ~ 320 mAs | |
| X-Ray Tube | Maximum Peak Voltage | 125 kV |
| Spot Focus | Small: 1.0 mm / Large: 2.0 mm | |
| Anode Power | 21 kW / 42.5 kW | |
| Anode Speed | 2700 rpm | |
| Target Angle | 16° | |
| Anode Heat Capacity | 140 KHU | |
| Table | Table Size | 1400 mm × 600 mm |
| Total Height | 1960 mm | |
| Max Travel Front-Back | 150 mm | |
| Max Travel Left-Right | 220 mm | |
| Flat Panel Detector | Sensor / Scintillator | Amorphous Silicon / Cesium Iodide |
| Imaging Area | 430 × 430 mm² | |
| Pixel Array | 3072 × 3072 | |
| Pixel Size | 140 μm | |
| A/D Conversion | 16-bit | |
| Limiting Resolution | 3.57 Ip/mm | |
| Maximum Linear Dose | 70 μGy | |
| Dynamic Range | >80 dB | |
| Image Readout Time | 2–4 s | |
| Veterinary Software | Interface | 16 languages, worklist supported |
| Data Acquisition | DICOM Worklist, BDT/CDT, HL7 or manual acquisition | |
| Image Tools | Unlimited zoom, rotation, mirroring, measurement tools | |
| Emergency Registration | Quick and secure patient registration | |
| Image Processing | Window/Level, gamma, filters, noise reduction | |
| Measurement Functions | TPLO, TTA, HD, etc. | |
| Export Formats | PNG, TIFF, BMP, DICOM | |
| Presets | Over 400 programs, freely customizable | |
| PACS Integration | Yes |
The VET DX-V1 is a state-of-the-art digital veterinary X-ray system, specifically designed for animal clinics, veterinary practices, and research facilities. It combines advanced X-ray technology with a high-resolution flat-panel detector, intuitive software, and ergonomic design to deliver precise, fast, and safe diagnostics for your animal patients.
With its comprehensive all-in-one system – including a high-power X-ray generator, Toshiba X-ray tube, beam aligner, Careview flat-panel detector, veterinary software, ergonomic metal imaging bed, and touchscreen computer – the VET DX-V1 digital X-ray system enables efficient and professional diagnostics in any veterinary setting.
Key Advantages of the VET DX-V1
- High-Resolution Imaging: The VET DX-V1 delivers crystal-clear images for precise diagnostics. The amorphous silicon detector combined with cesium iodide ensures excellent image quality with minimal radiation exposure.
- Comprehensive Software Features: The integrated veterinary software supports DICOM Worklist, BDT/GDT, HL7, and manual data acquisition. Images can be easily edited, rotated, mirrored, zoomed, and measured. Emergency patients can be registered quickly, and all data is securely archived.
- Measurement and Analysis Functions: Specialized measurement tools such as TPLO, TTA, and HD facilitate accurate orthopedic diagnostics and allow precise surgical planning.
- Ergonomic Design: The metal imaging bed is fully adjustable to safely accommodate animals of all sizes. Movable tables and a fixed arm ensure animals can be comfortably positioned while the operator works ergonomically.
- User-Friendly Operation: The touchscreen in the X-ray room provides intuitive control, fast image capture, and easy navigation of the software.
- Seamless Integration: The system can be easily connected to PACS image management systems, enabling smooth archiving and management of all images.
- Reliability and Durability: High-quality components, including the Toshiba X-ray tube and powerful high-power generator, make the VET DX-V1 robust, low-maintenance, and long-lasting – perfect for daily use in veterinary clinics.
- Versatile Applications: Whether for routine examinations, emergency diagnostics, or complex orthopedic analyses, the VET DX-V1 meets all modern veterinary imaging requirements, delivering fast, accurate, and safe results.
The VET DX-V1 digital veterinary X-ray system provides clinics with a complete solution that combines exceptional image quality, ease of use, and maximum safety. Optimize your diagnostic workflow, increase practice efficiency, and improve patient care with the latest in X-ray technology.
