Flat Panel Detector Careray 1717 wireless
€ 9.700,00

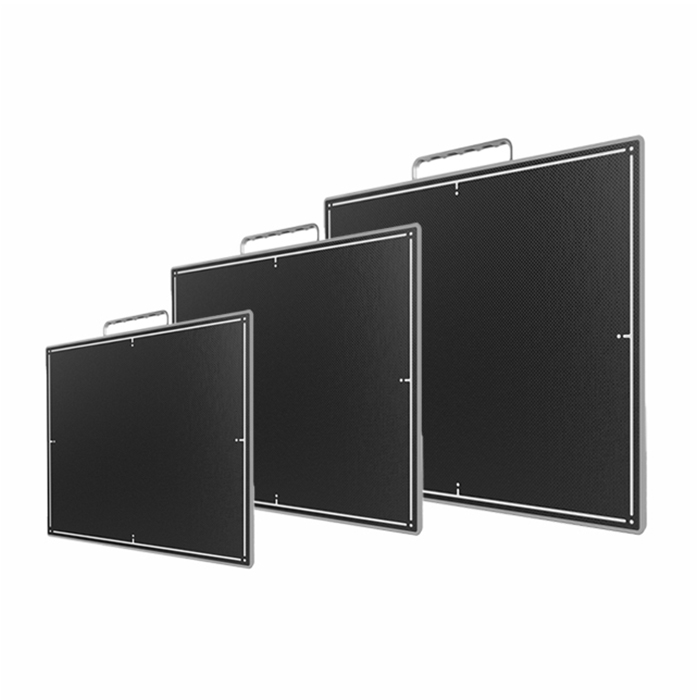

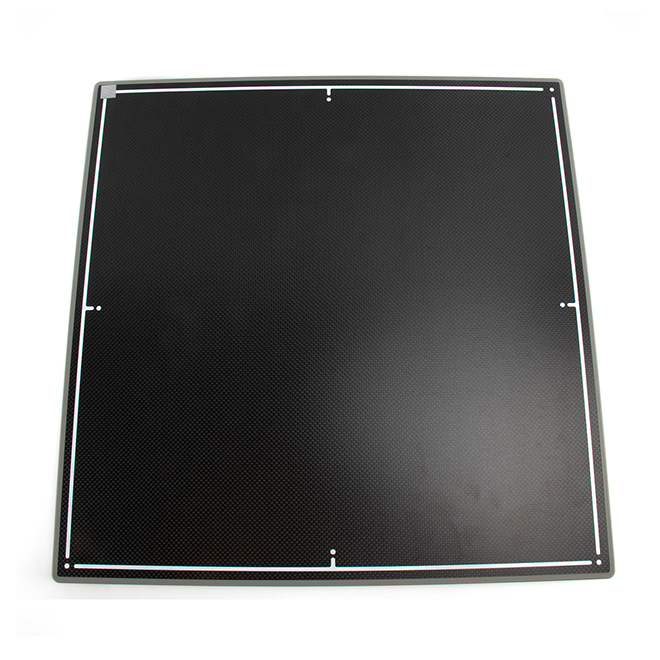

CARERAY 1717 Wireless – Digital X-Ray Flat Panel Detector 17×17″
The CARERAY 1717 Wireless is a high-resolution 17×17 inch digital X-ray flat panel detector designed for both human and veterinary radiography. It delivers fast, high-quality images with low radiation dose and supports wireless (WiFi 2.4/5 GHz) and optional wired Gigabit Ethernet connectivity for flexible use.
Key Technical Details:
-
Detector Type: Amorphous Silicon (a-Si)
-
Scintillator: CsI (Cesium Iodide)
-
Active Area: 430 × 430 mm
-
Pixel Matrix: 3072 × 3072
-
Pixel Size: 140 µm
-
Limiting Resolution: 3.57 lp/mm
-
Image Size: 17 × 17 inches
-
Data Interface: WiFi / Optional Gigabit Ethernet
-
Operating Systems: Windows 7 / 10 / 11 (64 Bit)
-
Battery: High-capacity, hundreds of exposures per charge
-
Special Feature: F2AED – automatic exposure detection (no generator connection needed)
Lightweight, durable, and easy to integrate into existing X-ray systems, the 1717 Wireless is ideal for general radiography, orthopedics, trauma imaging, and veterinary applications.
Digital X-Ray Flat Panel Detector 17×17 Inch – CARERAY 1717 Wireless
Advanced Digital X-Ray System for Human and Veterinary Medicine
The CARERAY 1717 Wireless Digital X-Ray Detector is a state-of-the-art wireless 17×17 inch flat panel detector designed for digital radiography (DR) in clinics, medical practices, and veterinary facilities. It replaces traditional film-based systems, delivering fast, high-resolution X-ray images at low radiation doses.
With wireless connectivity, robust construction, and excellent image quality, the 1717 Wireless is ideal for upgrading existing X-ray systems.
Key Benefits of CARERAY Digital X-Ray
- ✔ High-resolution digital X-ray images with 140 µm pixel pitch
- ✔ Wireless detector (WiFi 2.4 & 5 GHz, IEEE 802.11 a/b/g/n)
- ✔ 17×17 inch cassette size – compatible with standard bucky trays
- ✔ Fast image transfer for efficient workflow
- ✔ No connection to X-ray generator required (F2AED technology)
- ✔ Long-lasting battery for hundreds of exposures per charge
- ✔ Suitable for human and veterinary applications
Technical Highlights – Digital X-Ray Flat Panel
- Detector Technology: Amorphous Silicon (a-Si)
- Scintillator: CsI (Cesium Iodide)
- Active Area: 430 × 430 mm
- Image Size: 17 × 17 inches
- Pixel Matrix: 3072 × 3072
- Pixel Size: 140 µm
- Limiting Resolution: 3.57 lp/mm
- Data Interface: WiFi / Optional Gigabit Ethernet
- Operating Systems: Windows 7 / Windows 10 / Windows 11 (64 Bit)

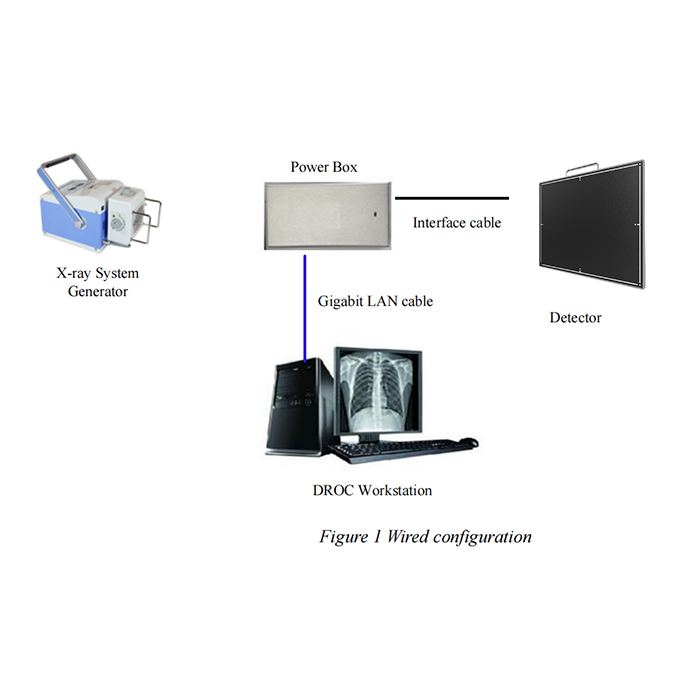

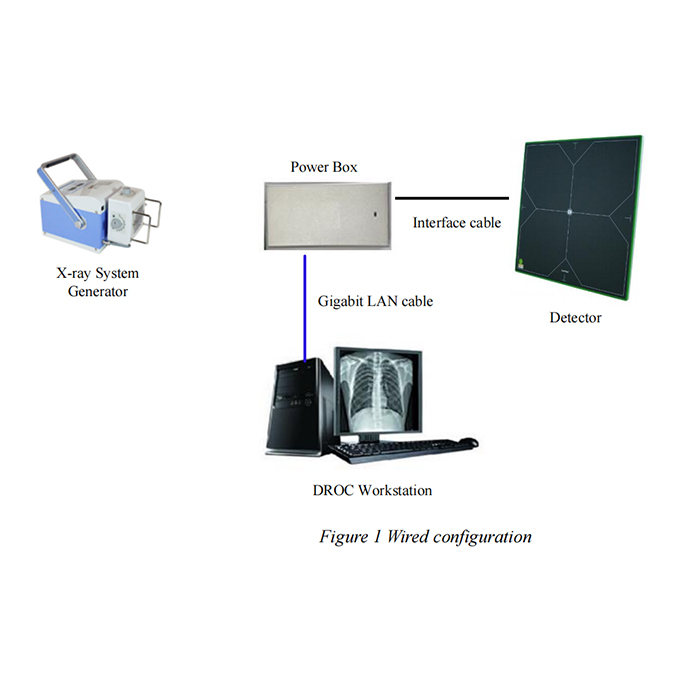

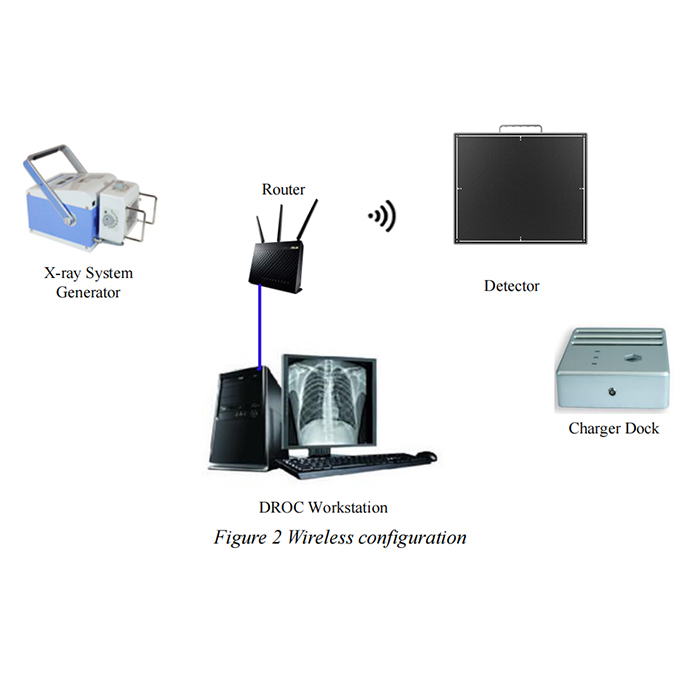

Flexible Operation – Wireless or Wired
The 1717 Wireless digital X-ray detector supports both wireless operation and optional wired connection via Gigabit Ethernet, making it versatile for both stationary and mobile use.
The patented Full-Field Automatic Exposure Detection (F2AED) automatically detects X-ray exposure without needing a direct connection to the generator.
Applications – Digital Radiography
- General radiography (human medicine)
- Orthopedics and trauma imaging
- Veterinary medicine (small and large animals)
- Mobile X-ray systems
- Upgrading analog X-ray systems
❗ Not suitable for mammography.
Durable Design for Everyday Use
The lightweight yet robust aluminum alloy housing with shock-absorbing frame ensures maximum durability, even in mobile settings or uneven environments.
Certification & Safety
- Medical Device Class II
- Quality Certification: SGS
- Safety Standard: EN 149-2001 + A1-2009
- Warranty: 2 years
- Support: Online technical support
Workstation Requirements
- Intel Core i3 or higher
- Minimum 4 GB RAM
- Hard disk ≥ 500 GB
- Resolution: 1920 × 1080
- Dual Gigabit network card
- Windows 7 / Windows 10 / Windows 11 (64 Bit)
Upgrade to Digital X-Ray Today
The CARERAY 1717 Wireless Digital X-Ray Flat Panel Detector offers a future-proof, cost-efficient solution for modern digital radiography – delivering outstanding image quality, high reliability, and maximum flexibility.
👉 Contact us today for a quote or consultation on digital X-ray systems.
