Flat Panel Detector StarRay 01
€ 9.560,00
Digital X-Ray Flat Panel Detector

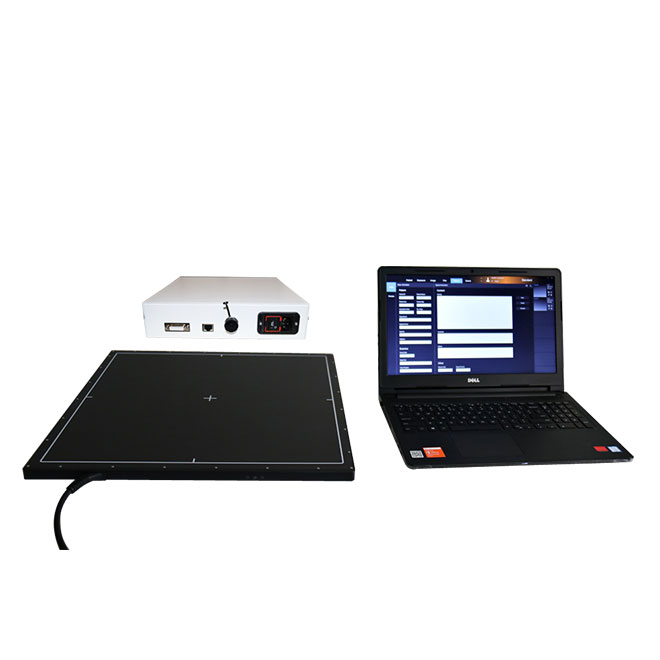

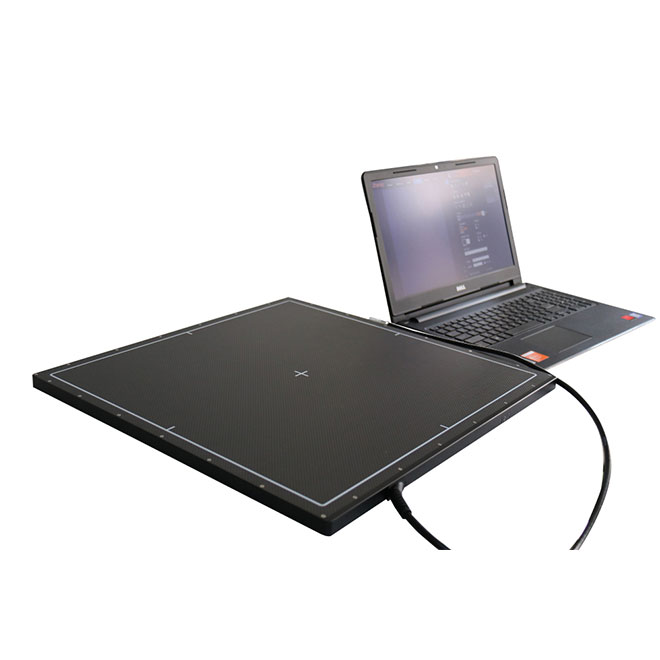

High-resolution 17 × 17 inch digital X-ray flat panel detector equipped with a CsI or GdOS scintillator. Featuring a 3072 × 3072 pixel matrix, 140 μm pixel pitch, and 3.7 lp/mm spatial resolution, it delivers sharp, low-dose digital X-ray images. The detector measures 460 × 460 × 16 mm and is fully DICOM-compatible, supporting advanced image acquisition, processing, and analysis. Ideal for hospitals, clinics, and mobile digital radiography (DR) systems.
Digital X-Ray System – High-Resolution Flat Panel Detector for Advanced Imaging
Our digital X-ray system with a high-resolution flat panel detector delivers outstanding image quality, efficient workflows, and reliable diagnostic performance. The 17×17 inch flat panel detector is designed for professional use in hospitals, clinics, radiology departments, and mobile X-ray units.
Using advanced detector technology with CsI or GdOS scintillators, the system produces sharp digital X-ray images at a low radiation dose, making it ideal for all digital radiography (DR) applications.
High-Resolution Technology for Digital X-Ray Imaging
The digital X-ray detector features a 3072 × 3072 pixel matrix, a 140 μm pixel pitch, and a spatial resolution of 3.7 lp/mm. This ensures excellent image detail and high diagnostic accuracy for general radiography, orthopedics, trauma imaging, and emergency diagnostics.

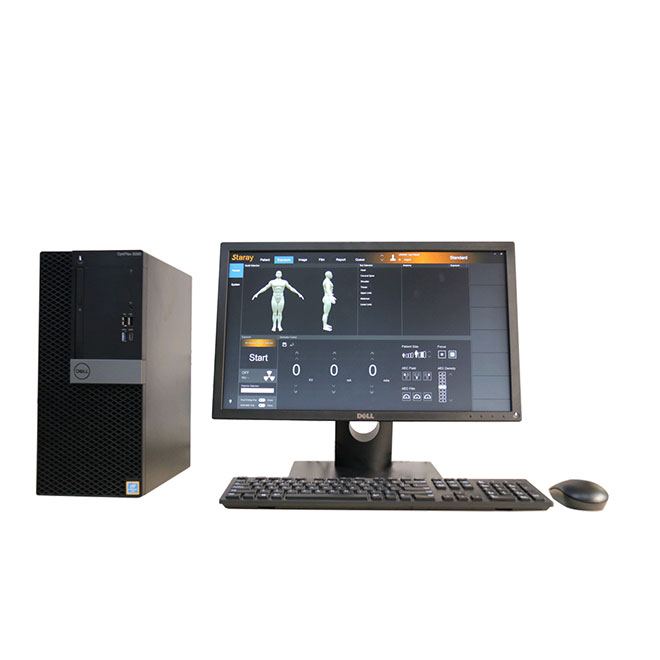

Efficient Workflow with DICOM DR Workstation
The integrated DICOM DR workstation (Staray 4.4.0) supports a smooth and efficient digital X-ray workflow:
- Patient management and worklist query
- Fast image acquisition and processing
- DICOM image archiving and export
- CD/DVD burning with integrated DICOM viewer
All features are optimized for modern digital X-ray systems.
Advanced Image Processing and Analysis
The digital X-ray system includes powerful image processing and diagnostic tools:
- Window level (W/L) adjustment
- Zoom, pan, rotation, and image inversion
- Measurement tools (distance, angle, area)
- Multi-window image display
- Text and arrow annotations
These functions enable fast, accurate, and confident diagnosis in daily digital radiography workflows.
Slim, Mobile, and Reliable Design
With a slim profile of only 16 mm and compact dimensions, the flat panel detector is easy to integrate into both stationary and mobile digital X-ray systems. Its robust construction ensures long-term reliability in demanding clinical environments.
Key Benefits at a Glance
- Modern digital X-ray (DR) technology
- High-resolution 17×17 inch flat panel detector
- Low radiation dose with excellent image quality
- Full DICOM compatibility
- Ideal for hospitals, clinics, and mobile X-ray applications
- Fast delivery within 7–10 working days
Learn more about our digital X-ray system or request a customized quotation today.
Our team will be happy to help you find the ideal digital radiography solution for your clinical needs.
