Mindray DP-10 – Black & White, Portable and Powerful
€ 3.600,00

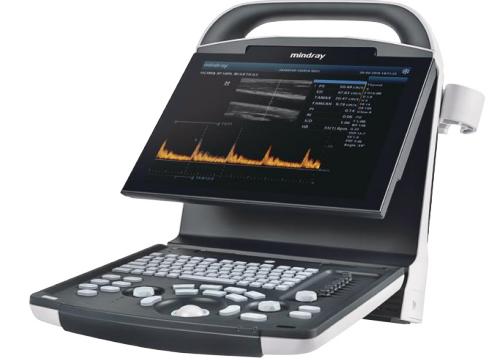

Mindray DP-10 – Black & White, Portable, and Powerful
Mindray DP-10 – Portable Black & White Ultrasound Device
The Mindray DP-10 is an ultra-compact, mobile black-and-white ultrasound system designed for clinics, practices, and house calls. Ready to scan in just 17 seconds, it enables fast and reliable diagnostics and features an optional Li-ion battery for up to 100 minutes of cordless operation. With a 12-inch LED monitor, intuitive controls, automatic image optimization (iTouch™), and advanced imaging modes, it is ideal for routine and emergency examinations.
Technical Specifications – Mindray DP-10
| Category | Details |
|---|---|
| Monitor | 12-inch LED |
| Imaging Modes | B / 2B / 4B / M / B+M |
| Image Enhancement | THI (Tissue Harmonic Imaging), iClear™ (Speckle Suppression), iTouch™ (Automatic Optimization), ExFOV (Extended Field of View) |
| TGC Control | 8 segments |
| Storage & Data | 8 GB SSD, iStation™ patient management, DICOM 3.0 |
| Battery | Optional iPower Li-ion battery, up to 100 minutes runtime |
| Probes | 35C50EB Abdomen (2–6 MHz, 50 mm radius), 75L38EB Linear (5–10 MHz, 38 mm FOV), 75L53EA Wide Linear (5–10 MHz, 50 mm FOV) |
| Start-Up Time | 17 seconds |
| Special Features | iScanHelper integrated ultrasound tutorial, KV-billable, mobile and lightweight |
This portable system combines speed, flexibility, and advanced imaging capabilities in a compact form, making it perfect for doctors, clinics, and mobile healthcare professionals who need quick, reliable, and high-quality ultrasound diagnostics.
Ultra-Compact Ultrasound System for Clinics, Practices, and House Calls
The Mindray DP-10 is a modern, portable black-and-white ultrasound system designed for routine examinations, emergency situations, and mobile use. With its compact design, fast boot-up time of just 17 seconds, and optional lithium-ion battery, it offers maximum flexibility for physicians, alternative practitioners, and medical professionals.
Why Choose the Mindray DP-10?
- Portable & Lightweight: Ideal for house calls and mobile practice use
- Fast Start-Up: Ready to scan within 17 seconds
- Battery Operation: Optional battery provides up to 100 minutes of cordless use
- Reimbursement Ready: Supports features required for billing with statutory health insurance associations
- User-Friendly: Intuitive menu navigation, automatic image optimization, and integrated iScanHelper training support
Technical Specifications
| Feature | Details |
|---|---|
| Monitor | 12-inch LED display |
| Imaging Modes | B, 2B, 4B, M, and B+M modes |
| Image Enhancement | THI (Tissue Harmonic Imaging), iClear™ (Speckle Reduction), iTouch™ (Auto Optimization), ExFOV (Extended Field of View) |
| Storage & Data | 8 GB SSD, iStation™ patient management, DICOM 3.0 |
| TGC Control | 8-segment TGC |
| Battery | Optional iPower Li-ion battery, up to 100 minutes runtime |
| Tutorial & Support | Integrated iScanHelper ultrasound training guide |
Available Ultrasound Probes
| Probe | Frequency Range | Field of View / Radius |
|---|---|---|
| 35C50EB Convex (Abdominal) | 2 – 6 MHz | 50 mm radius |
| 75L38EB Linear | 5 – 10 MHz | 38 mm FOV |
| 75L53EA Wide Linear | 5 – 10 MHz | 50 mm FOV |
Applications
- House calls and mobile medical services
- Emergency diagnostics in clinics and ambulances
- Routine examinations in general practice, gynecology, urology, pediatrics, and more
- Ideal for physicians, clinics, and healthcare professionals requiring fast and reliable diagnostics
Why the DP-10?
The DP-10 combines portability, performance, and ease of use in one compact system. Whether in a clinic, private practice, or mobile setting, it delivers fast and precise diagnostic results with effortless operation.
Order now and elevate your mobile ultrasound diagnostics to the next level!
